4G Sim Card Solar IP PTZ Dome Camera

Model:

4G Sim Card Solar IP PTZ Dome Camera

1. Use of industrial 4G module, stable, long life,Support 720P,960P
   or 1080P ;
2. All aluminum alloy, easy assembly 4G SIM card and micro SD/TF card;
3. 3 high-power array IR,effective night vision distance of 60-70 meters;
4. Standard SD/TF memory card slot (support 128G card);
5. Standard 1 X 5DB 4G antenna,1 X 5DB WIFI antenna;
6. Support P2P remote check ;
7. Power consumption: day 5W / night 10 W, the whole day power
   consumption about 12V 15 AH;
8. Optional function: audio jack , 2.8-12mm/6-22mm auto focus lens.

DESPCRITION:



           4G Sim Card Solar IP PTZ Dome Camera



4G/3G Main Feature:



l  Use of industrial 4G module, stable, long life,Anti-interference ability;



l  4G main chip ZX297520M WIFI chipRTL8192ES-CG;



l  4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe \ US \ Japan \ African 4G standards;



l  Network type FDD-LTE, TDD-LTE, WCDMA, TD-SCDMA, GSM/GPRS/EDGE;



l  RateFDD-LTE/TDD-LTEup speed 50M / down speed 150Mbps,
           WCDMA
up speed 5.76M / down speed 21Mbps,
           TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps;



l  Support network equipment using wireless access methods;



l  With wireless router function, the maximum support 8 devices WIFI access (IPC \ phone \ computer );



l  WiFi2412MHz-2472MHz802.11b/g/nThe maximum transfer rate is up to 72Mbps;



l  USIM/SIM card Micro SIM card;



l  Built-in WEB client, Can view the 4G signal strength, modify the login password, wireless access password and others ;





IP Camera Main feature:





l  Private mold, 4.5" housing, housing rotate with lens together, keep pace.



l  IP66 waterproof level



l  3 pcs imported SEL powerful SDM array IR source+ Finland LEDIL lens, effective night



l  Vision distance is 60 meters in dark environment.



l  128 preset, 4 tour routes, tour scan speed is adjustable, can set stay time for preset positions.



l  Wall mount bracket.



l  Support 1080P,960P,720P, support ONVIF protocol, Support P2P .



l  Standard with WIFI function , Support max 128GB TF card (not included).



l  Extra function need to pay cost: audio / Alarm interface , 2.8-12mm/6- 22mm auto focus zoom lens are optional



l  Medium speed: horizontal rotation speed is 60°/sec, vertical rotation speed is 40°/sec.



l Horizontal 355° continuously rotate, the speed is 60°/sec



l Hand operation speed: horizontal 0.05°~60°/sec, vertical 0.05°~90°/sec. Preset points move speed: horizontal 60°/sec, vertical 40°/sec.



l  With privacy mask function, internal set of data is not lost after power failure



l  120 preset, 8 cruise routes. The stay time of preset & tour scan speed is adjustable

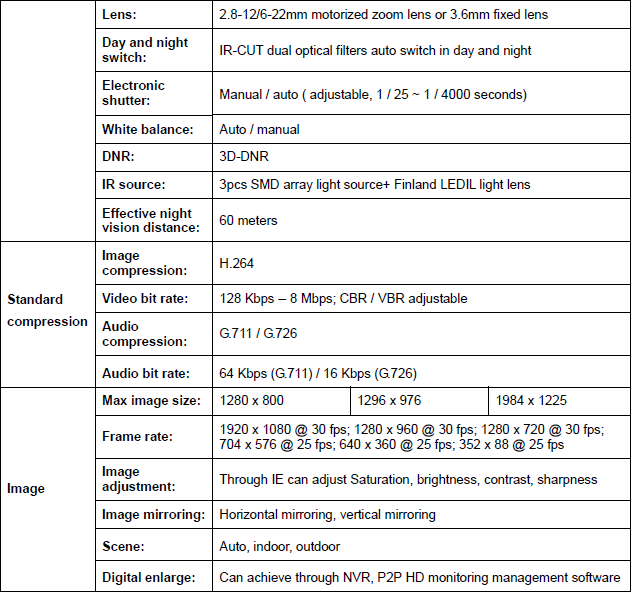

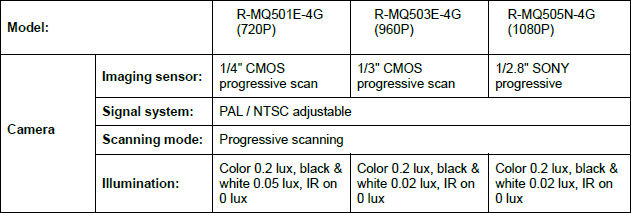

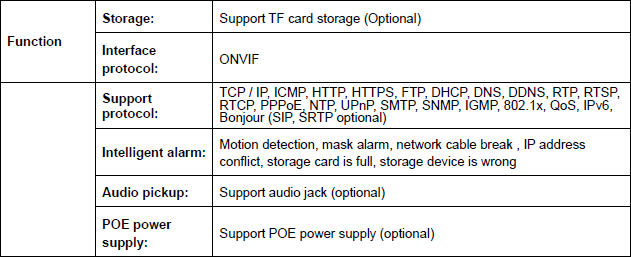

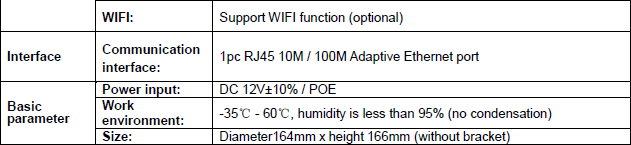

Technical parameters
