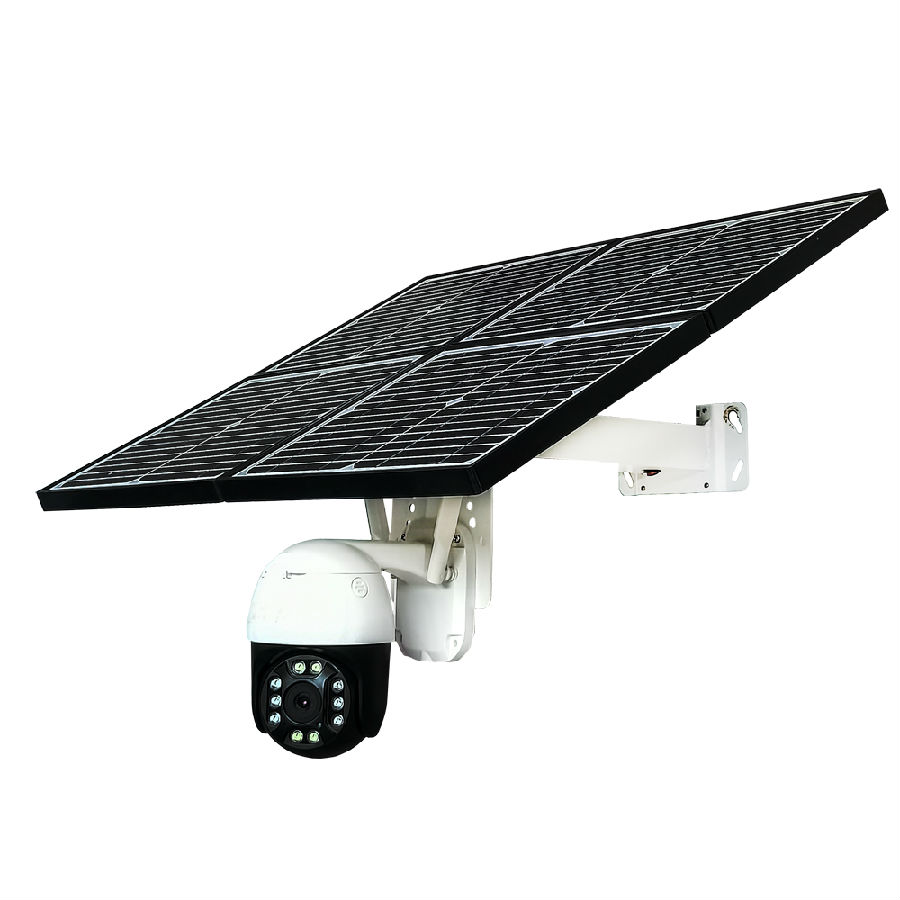

4G WIFI Solar Powered Surveillance System


4G WIFI Solar Powered Surveillance System

1.Use of high-performance monocrystalline silicon solar panels,48W .
2.The solar panels can be disassembled and assembled, the whole
  packaging size is small,less than 6KG.
3.Built-in 15AH rechargeable 21700 battery .
4.1080P 4G/WIFI PTZ dome camera with dual lights.
5.Can works 3 days in rainy day for 24 hours video recording .


           4G WIFI Solar Powered Surveillance System



Solar Battery System :


l Outdoor waterproof, metal material

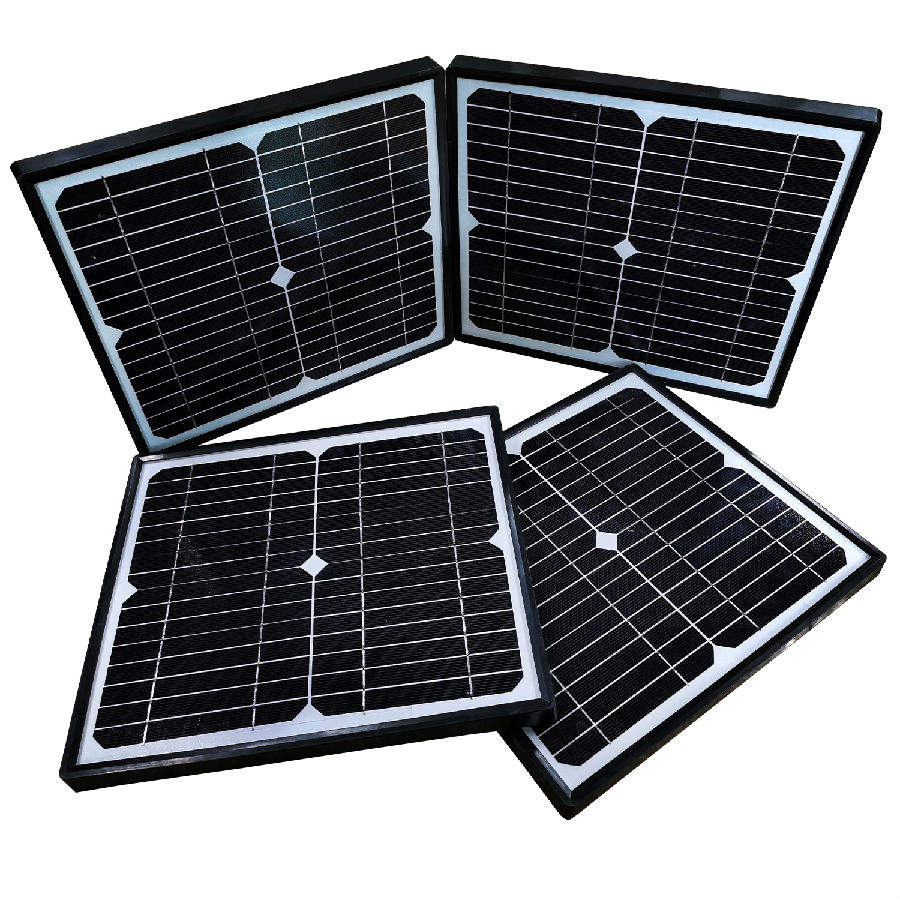

l 48W monocrystalline silicon solar panel, charging more efficiently

l The solar panels can be disassembled and assembled, the packaging size is small, and

      the logistics and storage costs are low

l Automatic mode, winter mode, micro power consumption mode,standard mode,

       mobile APP can be set remotely;

l 12V15AH 21700 rechargable lithium battery, safe and long life

l Constant current and constant voltage charge and discharge control technology, more

      reliable and stable

l Can remotely control the camera to restart by APP

l MCU intelligent control APC automatic power adjustment, longer battery life and more


l Can be used for DC 12V cameras, standby time :Example: The camera has a power of

     1.6W during the day and 2.8W at night, and can work for 3 days in rainy days

l Installation method: wall-mounted, pole-mounted

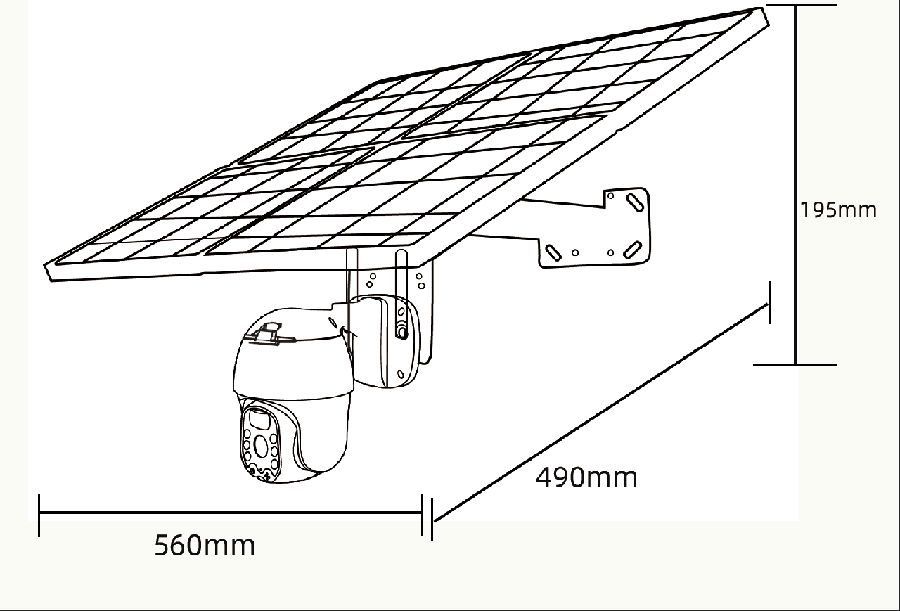

l Packing size: 316mm×295mm×266mm (included solar panels,batterys,a bracket and

      a ptz camera)




PTZ Camera


l Outdoor waterproof,plastic material

l 6pcs array IR + 4pcs white LED, effective night vision distance is 20-30 meters in dark


l H.265/H.264  Video compression, 2 megapixel (1920x1080)

l IR-CUT auto switch in day and night, 4mm megapixel lens

l Horizontal 355° rotation, rotate speed 60° / second, vertical 3° - 90° rotate, speed

     30° / second

l Will not lose internal data when power off, can manual control IR LED turn on / off

l Support 3D DNR, digital WDR, auto white balance, auto electronic shutter, auto

       electronic gain, real color reproduction, high resolution image

l Support ONVIF protocol

l Support FTP server

l Support IE ,Google, Firefox browser

l Functions: WIFI / Audio / TF Card slot /4G (optional)

l Free P2P for remote surveillance

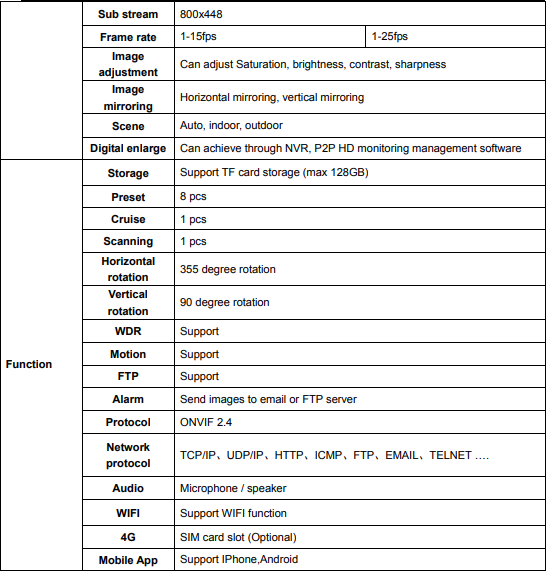

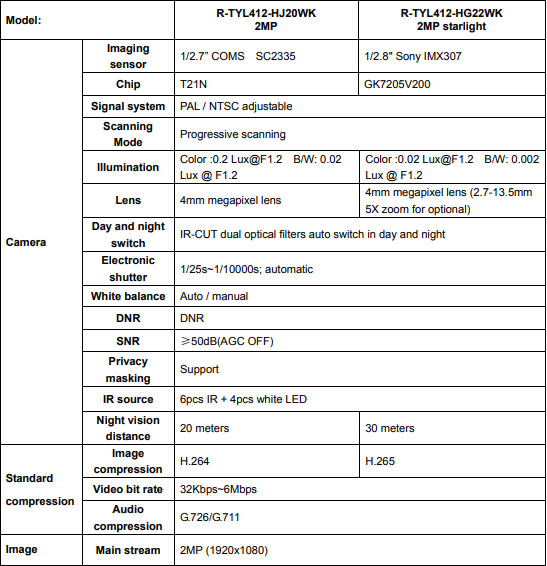

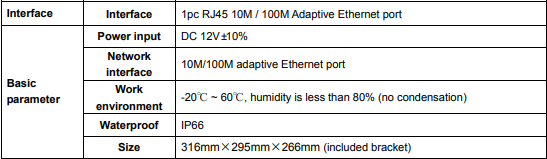

Technical parameters:
