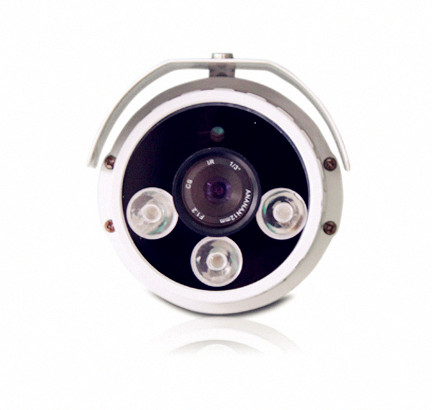

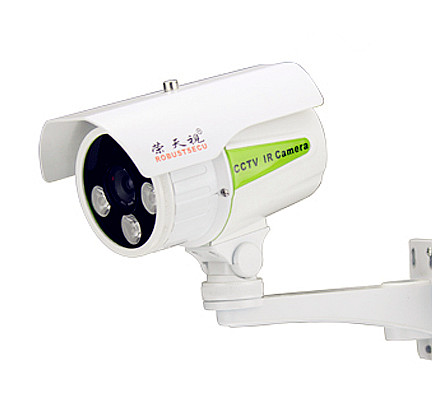

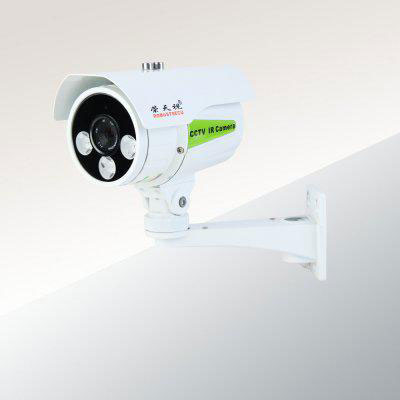

Outdoor Megapixel HD IR IP Camera with 3 IR LED R-H235N series

Model:

Outdoor Megapixel HD IR IP Camera with 3 IR LED R-H235N series

* Professional design for hd IP camera, beautiful and delicate, best for outdoor use.
* Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.
* 3pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 60m, excellent performance in dark environment.

DESPCRITION:

RatingSecu        Outdoor Megapixel HD IR IP Camera

Model No.: R-H235N, R-H335N, R-H535N





Main feature:


Professional design for hd network camera, small, beautiful and delicate, best for home security.


Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.


3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.


Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.


3pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 60m, excellent performance in dark environment.


Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.


Exclusive innovation design, can choose our intelligent rotating bracket.
Support ONVIF protocol, can provide the SDK.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.


Technical parameters:

Model:

R-H235N

R-H335N

R-H535N

Camera

Imaging sensor:

1/4" CMOS

progressive scan

1/3" CMOS

progressive scan

1/2.8" SONY

progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux,

black & white 0.05 lux,

 IR on 0 lux

Color 0.2 lux,

black & white 0.02 lux,

IR on 0 lux

Color 0.2 lux,

black & white 0.02 lux,

 IR on 0 lux

Lens:

Standard with 3 million pixel 6-16mm fixed focus CS lens

Day and night  switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

3pcs SMD array light source+ Finland LEDIL light lens

Effective night vision

distance:

65 meters (measured value without light condition)

Standard

compression

Image compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps;

1280 x 720 @ 30 fps; 704 x 576 @ 25 fps;

640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment:

Through IE can adjust Saturation, brightness, contrast, sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P hd monitoring management software

Function

Storage:

No supported TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP , HTTP, HTTPS, FTP,

DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

 SMTP, SNMP, IGMP, 802.1 x, QoS, IPv6, Bonjour ( SIP, SRTP optional )

Intelligent alarm:

Motion detection, shadow alarm, network cable break,

 IP address conflict, the full of storage card, the wrong of storage card

Audio pickup:

Support add external audio pickup

POE power supply:

Non support

WIFI:

Non support

Interface

Communication

interface:

1pc RJ45 10M/100M Adaptive Ethernet ports

Basic

 parameter

Power input:

DC 12V ± 10%

Power consumption:

1W (IR off) / 7.8W (IR on)

1.1W / 7.9 (IR on)

Work environment:

-35℃ ~ 60℃, humidity is less than 95% (no condensation)

Size:

155 mm x 85 mm x 75 mm


The size of the picture:
