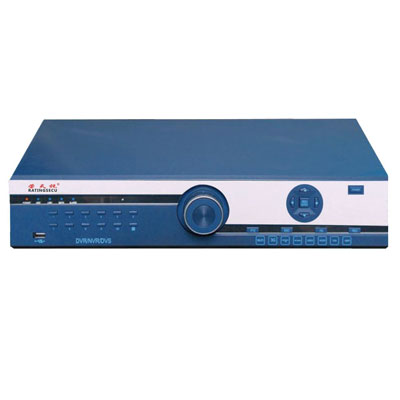

9CH/20CH Megapixel HD Embedded NVR

Model:

9CH/20CH Megapixel HD Embedded NVR

Support network speed dome camera and network video server.With ONVIF protocol.Can connect network camera of some famous brand: AXIS, Bosch, Panasonic, SANYO, SONY.

DESPCRITION:

Features:
R-QN6809A: Can connect 9CH 1080P or 9CH720P HD IP cameras.
SV-F820N ; R-QN6820A: can connect 20CH 720P or 16CH1080P HD IP cameras.
Support network speed dome camera and network video server.
With ONVIF protocol.
Can connect network camera of some famous brand: AXIS, Bosch, Panasonic, SANYO, SONY.
Support megapixel high definition network video preview, storage and playback.
Can choose any areas in the picture by mouse and can zoom the center.
Support digital enlarge of preview image and playback image.
Support inquiry, playback, backup video files by events.
Support 4CH Synchronous playback
Standard 2U big box, support 8 pcs of high capacity hard disk.
Can match NVR control keyboard, make the NVR and HD IP speed dome camera operation more convenient and simple.
Can drag the tree menu, more convenient to set parameters.
15X digital enlarge via mouse operation, can move enlarged image (preview / playback).
Instant screen-shots and view image. Can set a separate area in hard disk to save screen-shots images.
Video playback is displayed by time column and video type is displayed by color, so video query is very fast and convenient.
Video backup can be according to the length of time occur, backup can be accurate to the second (backup precise).
U-disk backup files can be directly playback on a host machine, more convenient.
Support 3G, WIFI connection function.
Standard resolution, can adjust resolution via display equipment, show the best image effect.
Ordering written of hard disk, start from 0 data, improve hard disk lifetime 2.5 times.


Technical parameters:

Model:

R-QN6809A

R-QN6820A

Box:

Standard 2U box

Operate system:

Embedded LINUX operate system

Image coding standard:

H.264 / MPEG4 AVC

Dual stream:

Can adjust image coding, variable stream, limited stream optional

Video Standard:

Each channel can set main and auxiliary stream

Monitor image quality:

G.711

Image playback quality:

9CH1080P / 720P

16CH 1080P or 20CH 720P

Video Playback:

4CH 1080P / 720P Synchronous playback

Regional block set:

Each channel support four regional block (need IPC support)

Intercom:

2 ways voice intercom

Video mode:

Support manual, auto, dynamic monitoring,

 alarm triggered recording mode (part needs IPC support)

Backup mode:

Support U disk, USB mobile hard disk, burner, network storage, backup

Operate mode:

Mouse, NVR control keyboard

Network video input:

9CH

20CH

Network audio input:

9CH

16CH

External

 interface

Video output:

1CH  VGA + 1CH HDMI

Audio output:

1pc BNC interface

Alarm input:

4CH

16CH

Alarm output:

2CH

4CH

Network interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

RS485 interface:

Duplex Standard 485 interface

USB interface:

USB 2.0 interface: 3(1 at front plate, 2 at back plate)

Local log on:

User name and password

Hard disk:

8 SATA interface + 1 E-SATA interface

Power supply:

ATX 110 - 220V / 300W ; 50 - 60Hz

Mobile surveillance:

Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart mobile phone

Power consumption:

≤ 35W (without hard disk)

Working temperature:

-10 oC ~ + 55 0C

Working humidity:

10% - 90%

Size:

Machine: 440 mm × 450 mm × 90 mm,

contain the packaging: 539 mm × 530 mm × 225 mm

Weight(without hard disk):

Net weight:6.5 kg, contain the packaging: 9.5 kg

Install way

Desktop mounted \ rack-mounted


The back of the NVR interface:
