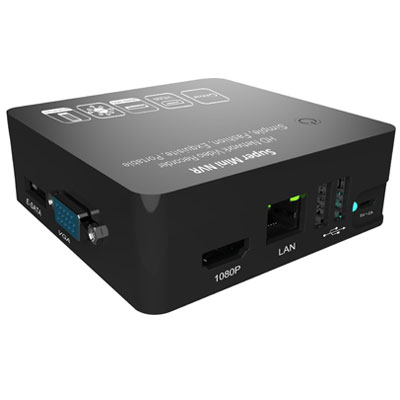

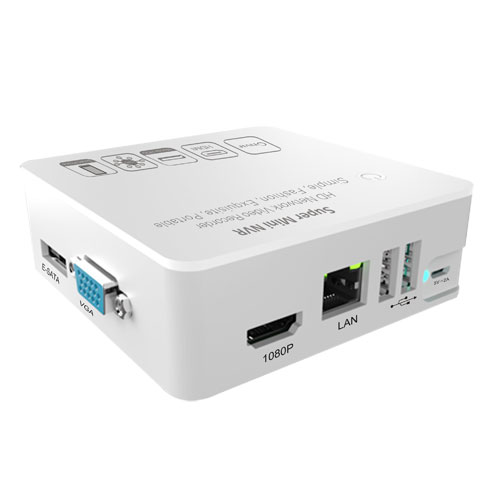

Mini Network Video Recorder SV-M04NF SV-M08NF

Model:

Mini Network Video Recorder SV-M04NF SV-M08NF

Support electronic enlarge image of preview image and playback; Support query by event or playback the backup video files.

DESPCRITION:

Features:
SV-M04NF: Can connect 4CH 1080P, 960P, 720P HD IP cameras, or network video server.
SV-M08NF: Can connect 8CH 1080P, 720P HD IP cameras, or network video server.
Small size + plastic material, beautiful appearance, delicate, light, convenient installation and carrying.
Use the latest huawei Hisilicon dedicated NVR chip,powerful performance and good stability.
The whole machine adopts industrial design with embedded system software, can continuously workings for long time, stable and have Longer lifetime.
Support 1080P, 960P, 720P, VGA resolution, support dual stream.
With ONVIF protocol , support HD IPC from main manufacturers in the market.
Support megapixel HD IP video preview, storage and playback.
Can choose any areas in the picture by mouse and zoom the center.
Support 4CH Synchronous playback.
1 / 4 / 9 images split display and also can Set up automatic tour display.
P2P remote monitoring, easily set up, pass any network.
One key automatically add IPC, simple operation, also have some options for manually add the IPC.
System software is automated and humanization, it just take two minutes to do 3 steps, then you can complete system setting of IPC access, setup remote monitoring and set video storage.
1 and 4 the image use main stream to display, more than 9 images use sub stream, but it can automatically transfer to use main stream when you double-click image for enlarging.
Support electronic enlarge image of preview image and playback; Support query by event or playback the backup video files.
Free CMS for less than 500CH system.


Main Functions:
Can drag the tree menu, more convenient to set parameters.
15X digital enlarge via mouse operation, can move enlarged image (preview / playback).
Instant screen-shots and view image. Can set a separate area in hard disk to save screen-shots images.
Video playback is displayed by time column and video type is displayed by color, so video query is very fast and convenient.
Video backup can be according to the length of time occur, backup can be accurate to the second (backup precise).
Do not build-in hard disk, can be connected with the U disk, USB mobile hard disk, E-SATA hard disk for video storage.
 Support 3G, WIFI connection function.
Standard resolution, can adjust resolution via display equipment, show the best image effect.
 Ordering written of hard disk, start from 0 data, improve hard disk lifetime 2.5 times.
Humanized user permissions Settings and the management function.
Support PC, tablet PC, mobile phone Local and remote viewing ,supportr iPhone, Symbian, Android) smart mobile phone.
Support Multilingual version, Online upgrade function.

Technical parameters:

Model

SV-M04NF

SV-M08NF

The machine size

Mini size: 8 mm × 88 mm × 32 mm

Operate system

Embedded LINUX operate system

Image coding standard

H.264/MPEG4 AVC

Image coding control

Can adjust image coding, variable stream, limited stream optional

Dual stream

Each channel can set main and auxiliary stream

Audio compression

G.711

Video signal Standard

PAL / NTSC

Image quality

 1080P (1920 x 1080) 30 frames / sec ;

960P / (1280 x 960) ; 720P (1280 x 720) 30 frames / sec.

Image playback quality

4CH 720P or 1CH 1080P  Synchronous playback

Privacy mask

Each channel support four privacy mask zones (need IPC support)

Intercom

2 ways voice intercom

Recording mode

Manual, auto, motion tracking,

alarm triggered recording mode ( some functions need IPC support)

Video storage mode

Via external U-disk / USB mobile hard disk / E-SATA hard disk

Operate mode

By mouse

Network video input

4CH

8CH

Network audio input

4CH

4CH

External

interface

Video output

1CH VGA + 1CH HDMI

Audio output

NA

Alarm input

NA

Alarm output

NA

Network interface

1 x RJ45 ,10M / 100M Adaptive Ethernet port

WIFI interface

3G, WIFI

RS485 interface

NA

USB interface

USB 2.0 interface X 3

Locally log-in

User name and password

Hard disk

Without internal hard disk, can not add hard disk inside.

need to use external U-disk / USB mobile hard disk / E-SATA hard disk

Power supply

DC12V / 2A

Mobile surveillance

Support (iPhone, Symbian, Android) smart phone

Power consumption

≤ 20W (without hard disk)

Working temperature

-10oC〜+ 550C

Working humidity

10%-90%
