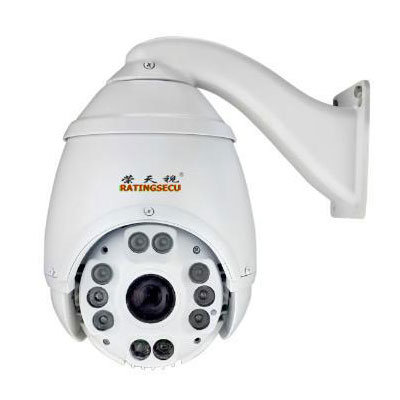

Megapixel AHD PTZ R-AH900B series

Model:

Megapixel AHD PTZ R-AH900B series

Coaxial AHD PTZ ,support control PTZ and OSD over only one coaxial
cable (video cable) ,don't need RS485 anymore

DESPCRITION:

 Waterproof Coaxial AHD PTZ





Designed and researched by us. Got 2 national patents, (Patent NO.: ZL200930162432.2, ZL 201020556261.9), got the "Test report" & "Production of registration of ratification" issued by the ministry of public security in China. Passed national certificates: CE, FCC, RoHS, IP65.


1080P,960P,720P AHD ,with high resolution ,no delay ,more stable,strong anti-interference capacity ,max transmission range is 500 meters ,with AHD-DVR support APP and PC remote check and replay .


UTC control ,support control PTZ and OSD over coaxial cable ,don’t need RS485 cable anymore. ( AHD DVR need support UTC function )


 7" size aluminum alloy housing, got anti-oxidation treatment, beautiful and durable, housing rotates follow the camera lens, IR light will not be hided by the cover.


The machine is sealed, avoid the components be oxidized, water-proof level up to IP65.


External DIP switch make you can directly set the Add Code & Baud Rate, no need to open the PTZ housing, more convenient.


Truly achieve circularly cold air. Use the whole aluminum alloy housing to help the heating dissipation, waterproof fan directly connect to the heating element, when the LED works will produce high temperature, the whole dissipation system can automatically cut down the temperature inside, keep suitable temperature in the housing, this ensure the life time of machine and LED. This perfect active external heat dissipation design has been got the utility model patent.


Use silicone gasket to conduct heat, aluminum alloy housing to dissipate heat, add external waterproof fan, add aluminum alloy cover, make the fan is hidden, also completely output the heat energy from the machine inside, ensure it can work for long time and have good stability.


All the imported IR LED with different illuminating angle, light is uniform, IR will auto turn on according to the lens zoom (Can change zoom value for change IR mode), keep pace with the camera.


Can choose 4 set of clocks for set different scan mode. Can choose alarm function 2CH in, 1CH out. Can set environment illumination for turn on IR, the IR brightness can be set in OSD menu, have 10 levels.


10 PCS imported SEL super brightness Array IR LED, effective night vision distance is 100~120 meters. Long distance and short distance with 2 levels IR working, auto control by the camera.


The best advantage of this new IR LED is, the rate of convert electricity to light up to 35%, more effective and save power, ensure the lifetime. Far distance or less distance only 6 LED works, less LED but much better effect, they will auto turn on according to the lens zoom.


Built-in English OSD menu for operate. Can set the camera, PTZ functions.


Internal data will not lose after power off, the decoder intelligently distribute power to motor, IR board, camera separately, make the machine can works more stable.


128 accurate preset positions, 2 pattern scan, 8 tour scan routes, 1 fixed home monitoring position, display PTZ direction, camera zoom, temperature. The rotate speed will auto adjust according to the lens zoom.


Rotation speed can auto adjust according to the lens zoom multiples. Hand operation speed: horizontal 0.05°~220°/sec, vertical 0.05°~100°/sec. Preset points move speed: horizontal 220°/sec, vertical 100°/sec.


Have mounting bracket and waterproof power adapter.



Main technical information:


1.Electricity
   Working power: DC12V / 3A      PTZ power: DC12V / 0.7A,
   IR light power: DC12V / 1.3A     Camera power: DC12V / 0.6A



2.Environment
  Working temperature:-35°C -- 69°C (with temperature control)
  Temperature inside dome below 45°C
  Working humidity: 90%RH



3.Camera module information (in the dome housing)



Model:

R-AH900B2

Effective Pixels

1920(H) X 1080(V)

Optical zoom

20X, f=5 to 100mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorSony IMX322

Main chip

NVP2440H

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.2 Lux / F1.6 (50 IRE)  B/W: 0.02 Lux / F1.6 (50 IRE)

Back light compensation

 ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g







Model:

R-AH900B3

Effective Pixels

1280(H) X 960(V)

Optical zoom

20X, f=4.7 to 94mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorSony IMX238

Main chip

NVP2431

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.1 Lux / F1.6 (50 IRE)  B/W: 0.01 Lux / F1.6 (50 IRE)

Back light compensation

ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g





Model:

R-AH900B4

Effective Pixels

1280(H) X 720(V)

Optical zoom

20X, f=5 to 100mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorAR0141

Main chip

NVP2431

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.2 Lux / F1.6 (50 IRE)  B/W: 0.02 Lux / F1.6 (50 IRE)

Back light compensation

ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g
