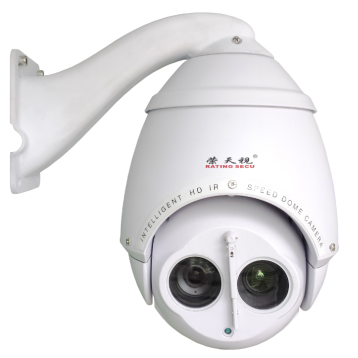

Laser AHD PTZ Camera

Model:

Laser AHD PTZ Camera

Coaxial Laser AHD PTZ ,support control PTZ and OSD over only one
coaxial cable (video cable) ,don't need RS485 anymore ,Laser
IR distance more than 300meters

DESPCRITION:

 AHD Laser PTZ Cameras



1.8" all aluminum alloy housing; External dial codes switch can set the Add Code and Baud Rate, needn't to open housing.


2.Intelligent zoom infrared laser light source, laser camera power up to 3W; laser infrared light irradiation angle of 2.5-75 degrees synchronized zoom automatically ; zoom range of laser light's perfectly matches the zoom module's to achieve the best effect of light; the measured night vision distance can be up to 200-350 meters; zoom module keep space with laser light to auto change color video to be B&W in night vision mode.


3.1080P, 960P, 720P AHD ,with high resolution ,no delay ,more stable,strong anti-interference capacity ,max transmission range is 500 meters ,with AHD-DVR support APP and PC remote check and replay .


4.UTC control ,support control PTZ and OSD over coaxial cable ,don’t need RS485 cable anymore. ( AHD DVR need support UTC function )


5.Can set environment illumination for control the laser light, can manually control laser open or close.


6.Can choose 4 set of clocks for set different scan mode.


7.Intelligent wiper function; using imported car wiper special silicone material, can open and close this function through software command


8.128 accurate preset positions, 2 pattern scan routes, 4 tour routes, 1 fixed monitoring position. Display PTZ direction and zoom ,number, and temperature, memory PTZ action after power-off.


9. English OSD menu, auto identify camera protocol of PELCO D / PELCO P.


10. Horizontal rotate for 360°, 220°/sec; Vertical rotate from 3°~90°, 100°/sec.

11.Use silicone for heat dissipation+ external heat dissipation device, the heat can be fully dissipated out of the speed dome, this technology has got the national patent. With stable waterproof allumium alloy 18V power supply


12.Have mounting bracket and waterproof power adapter






Main technical information:


1.Electricity

   Working power: DC12V / 3A (we give you DC12V/5A power adapter.)
   PTZ power: DC12V / 0.65A, IR light power: DC12V / 1000mA
   Lens power: DC12V /100mA, Camera power: DC12V / 800mA


2. Environment

  Working temperature:-35°C -- 69°C (with temperature control)
  Temperature inside dome below 45°C
  Working humidity: 90%RH







3.Camera (in the housing)



Model:

R-AH900E2

Effective Pixels

1920(H) X 1080(V)

Optical zoom

20X, f=5 to 100mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorSony IMX322

Main chip

NVP2440H

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.2 Lux / F1.6 (50 IRE)  B/W: 0.02 Lux / F1.6 (50 IRE)

Back light compensation

 ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g







Model:

R-AH900E3

Effective Pixels

1280(H) X 960(V)

Optical zoom

20X, f=4.7 to 94mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorSony IMX238

Main chip

NVP2431

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.1 Lux / F1.6 (50 IRE)  B/W: 0.01 Lux / F1.6 (50 IRE)

Back light compensation

ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g





Model:

R-AH900B4

Effective Pixels

1280(H) X 720(V)

Optical zoom

20X, f=5 to 100mm (F 1.6 to 3.2)

Signal

PAL/NTSC

Scanning System

2:1 Interlace

Synchronization

Internal

SensorAR0141

Main chip

NVP2431

Video Output

CVBS : 1.0Vp-p/75Ω

S/N (Y signal)

50 dB (AGC Off, Weight ON)

Min. Illumination

Color: 0.2 Lux / F1.6 (50 IRE)  B/W: 0.02 Lux / F1.6 (50 IRE)

Back light compensation

ON/OFF

Day & Night

Auto, Color, B/W  (ICR)

Gain Control

Auto / Manual

White Balance

Auto / Outdoor / Indoor / Manual

Electronic shutter speed

Auto/Manual (1/50sec ~ 1/100,000sec)

O.S.D

Built-in

3D DNR

Auto

Focus

Auto / Manual / Keyboard

UTC control

Support control PTZ and OSD

Protocol

Visa / Pelco-D (Baud rate 9600bps)

Operating Temperature/Humidity

-10℃ to +50℃ / 20% to 80% RH

Storage Temperature/Humidity

-20℃ to +60℃ / 20% to 95% RH

Weight

210 g
