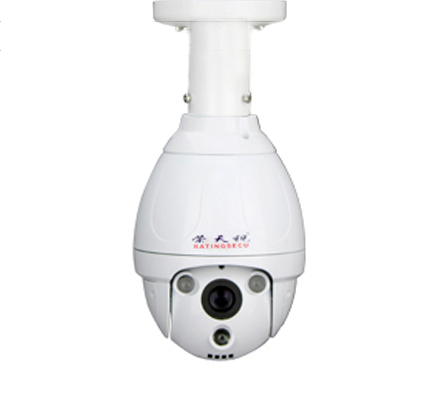

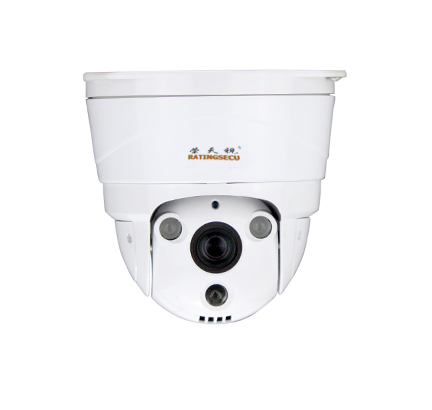

Mini AHD PTZ R-AH500 series


Mini AHD PTZ R-AH500 series

12X mini coaxial AHD PTZ ,support control PTZ and OSD
over only one coaxial cable (video cable) ,don't need
RS485 anymore







 Features :

1.1080P / 720P AHD ,with high resolution ,no delay ,more stable,strong anti-interference capacity ,max transmission range is 500 meters ,with AHD-DVR support APP and PC remote check and replay .

2.UTC control ,support control PTZ and OSD over coaxial cable ,don’t need RS485 cable anymore. ( AHD DVR need support UTC function )

3.3 pcs imported SEL powerful SDM array IR source+ Finland LEDIL lens, effective night vision distance is 60 meters in dark environment, IR LED with different illuminate angle, LED auto switch separately depend on the lens zoom.

4.4.5" whole aluminum alloy housing camera, housing rotate with lens together, keep pace. IP66 waterproof level, External dial code switch for set address code / baud rate, needn't to open camera housing.

5.PTZ function can be set, automatically recognize  protocol of PELCO D / PELCO P.

6.   128 preset, 4 tour routes, tour scan speed is adjustable, can set stay time for preset positions, Horizontal rotation speed automatically adjustable according to the lens zoom value.

7.Unique waterproof design for inlet wire, effectively avoid the water run into the housing, prevent the water run to machine if user use wrong install methods.

8.Use silicone gasket, aluminum alloy housing and external waterproof fan, built-in semiconductor cooling device can auto control the temperature, excellent heat dissipation system ensure its stability, this design already got national patent certificate also.

9.Medium speed: horizontal rotation speed is 60°/sec, vertical rotation speed is 40°/sec.

10.  High speed dome: 360° continuously rotate, horizontal rotation speed is 180°/sec, vertical rotation speed is 80°/sec.

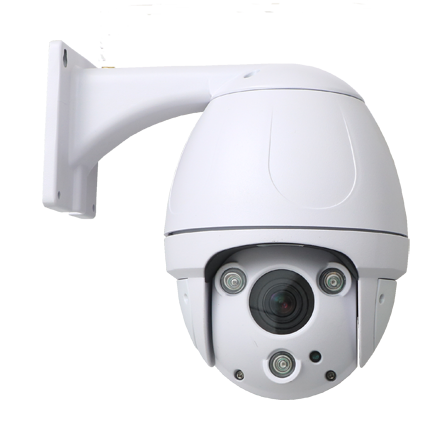

11.  Wall mount / pendent mount bracket is optional, with power supply .

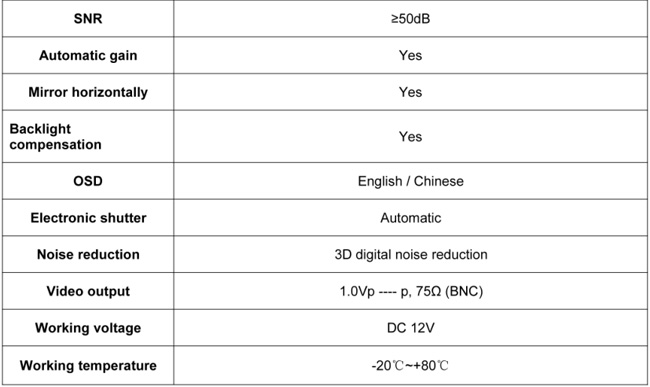

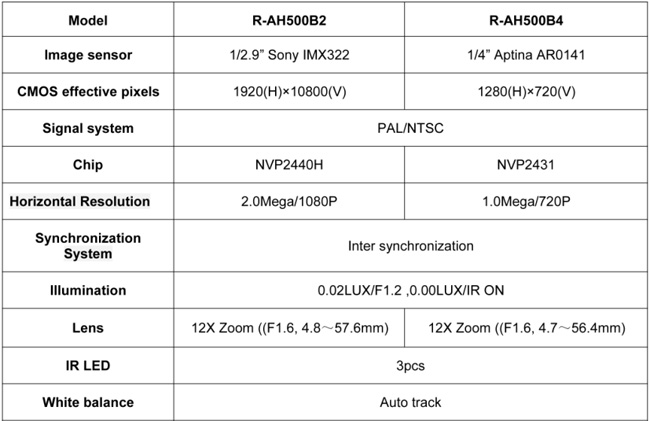

  Camera module information (in the dome housing)
