Mini AHD indoor PT Cameras


Mini AHD indoor PT Cameras

Coaxial AHD PT dome camera ,support control PTZ and OSD
over only one coaxial cable (video cable) ,don't need
RS485 anymore


Mini indoor AHD Pan Tilt dome cameras



1. 1080P 720P AHD ,with high resolution ,no delay ,more stable,strong anti-interference capacity ,max transmission range is 500 meters ,with AHD-DVR support APP and PC remote check and replay .

2. UTC control ,support control PTZ and OSD over coaxial cable ,don’t need RS485 cable anymore. ( AHD DVR need support UTC function )

3. 2 pcs imported SEL powerful SDM array IR source+ Finland LEDIL lens, effective night vision distance is 60 meters in dark environment, IR LED with different illuminate angle, LED auto switch separately depend on the lens zoom.

4. Plastic housing camera, housing rotate with lens together, keep pace. Innovative patented heat dissipation structure, make HD camera can works well under high temperature

5. Will not lose internal data when power off, can manual control IR LED turn on / off.

6. 3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm, 6mm,8mm fixed lens ,2.8-12mm motorized zoom lens optional,

7. PTZ function can be set, automatically recognize  protocol of PELCO D / PELCO P.

8. 64 preset, 4 tour routes, tour scan speed is adjustable, can set stay time for preset positions, Horizontal rotation speed automatically adjustable according to the lens zoom value.

9. Horizontal 330° rotation, rotate speed 30° / second, vertical 3° - 90° rotate, speed 20° / second.

10. Wall mount / ceiling mount bracket is optional.

11. Size: 131(DIA) x 95 (Height) mm. Packing: 22x18x18 cm / GW: 800g include power supply.

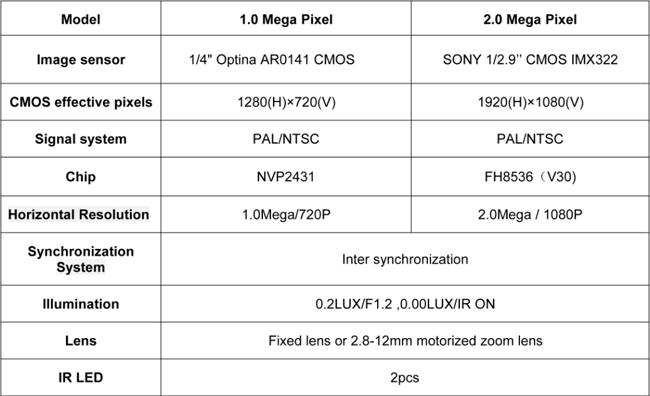

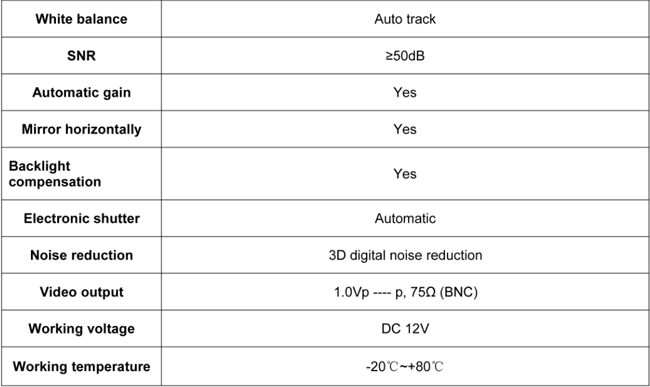

  Camera information :
