Home >>Product>>Camera Tools>>Control Keyboard
DESPCRITION:
Main feature:
Used for HD NVR, can easily works with our HD IP cameras and NVR.
Built-in protocol of SISO、Mainvan、PELCO、EREN、SAMSUNG、PANASONIC、KALATEL, for control speed dome camera.
Built-in NVR control protocol of HIKVISION, DAHUA, DALI.
Use RS-485 communication, 5 baud rate optional: 1200bps, 2400bps, 4800bps, 9600bps, 19200bps.
Can control speed dome camera’s PTZ function, lens zoom, preset, tour scan, menu setting.
With a 4-axis joystick which can used to control speed dome camera’s PTZ function and lens action.
Can set multi-image displayed, record video, play video, fast forward, fast reverse, information display, as well as menu set.
With LCD display camera ID, NVR ID, and operating status, operation is more convenient and easy.
Keys tone can be turn on or off.
Support multi-keyboard controller to works together.
Technical information sheet:
Power supply: | 5W/DC12V+-10% |
Communication method: | RS-485 |
Baud rate: | 1200 / 2400 / 4800 / 9600 / 19200 bps |
transmission distance | 1500M |
Interface: | RJ45,RS485、RS232 |
Display method: | COB display screen,Chinese/English |
Camera control protocol: | SISO, PELCO-D, PELCO-P, EREN, SAMSUNG, PANASONIC, KALATEL |
DVR control protocol: | HIKVISION, DAHUA, DALI, HANBANG |
Controller: | Keys , 4-axis joystick |
Environment temperature: | -10°C ~ 55°C |
Environment humidity: | ≤ 90%RH |
Size / weight: | 250 (L) x 130 (W) x 105 (H) mm / 0.65 kg |

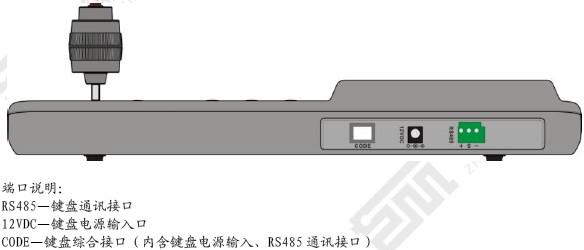

Back picture:
