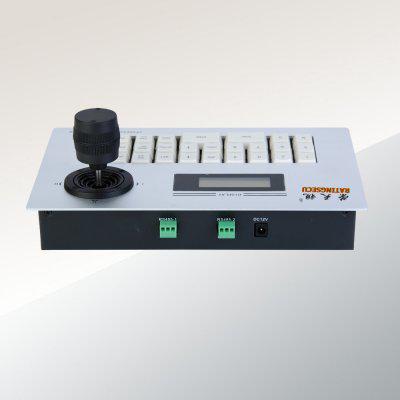

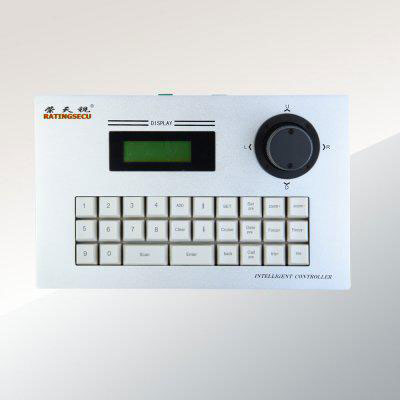

3-Axis control keyboard for speed dome camera R-B200


3-Axis control keyboard for speed dome camera R-B200

Aluminum alloy housing got the oxidation resistance treatment, more beautiful and not easy to become old.Good anti - interference capacity, standard transport distance up to 1200m.


1. Aluminum alloy housing got the oxidation resistance treatment, more beautiful and not easy to become old.
2. RS 485 wire, can control 255 address of dome camera / decoder / other terminal equipment, set range of address code: 0~255, can connect 128 equipments in parallel at the same time.
3. Good anti - interference capacity, standard transport distance up to 1200m.
4. Can operate the built PTZ in the dome camera to change its speed. Can control the camera zoom, aperture by manual operation, auto control or manual control the speed dome camera.
5. 3-Axis controlling joystick, LCD display screen, number and function keys, easy for operation.
6. Can set / delete / call preset positions & left & right limit scan of the dome camera.



Power supply:

DC9-12V ± 10%    50HZ    500mA


AC220V ± 10%    50/60HZ  transfer to  DC9V  500MA

Environment temperature:

-10 ~ + 60 °C

Environment humidity:

≤ 90% RH ( without frost )


RS 485 ( half duplex )

Baud rate:

1200, 2400, 4800, 9600  (bps)


3 PIN Wiring terminals


LCD display screen


255 (L) × 158 (W) × 100 (H) mm(include the height of the joystick)


1.4 KG
