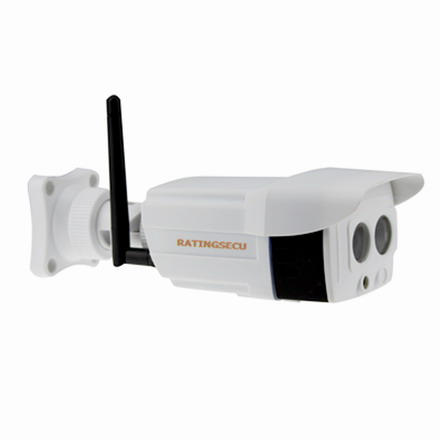

H.264 megapixel outdoor weatherproof IP camera with wireless

Model:

H.264 megapixel outdoor weatherproof IP camera with wireless

*Free P2P,support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1920x1280p,1280x960p,1280x720p
*3.0Megapixel HD 3.6 / 6 mm fixed lens
*IR-CUT auto swith in day and night
*1 pc SMD array IR LED, IR night vision distance 5-10 M
* IP66 ,Weatherproof outdoor camera
*Optional functions: WIFI ,TF card slot, audio,speaker,POE,Alarm ,PIR

DESPCRITION:

Main feature:

 Professional design for hd IP camera, small, beautiful and delicate, best for home  security.
 Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make hd camera can works well under high temperature
 3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
 Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
 3 million pixel HD lens + IR-CUT auto swith in day and night, 3.6mm / 6mm / 8mm lens optional.
 1pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 25m, excellent performance in dark environment.
 Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
 Innovate design for build-in audio pickup (external type optional).
 POE module and WIFI module optional.

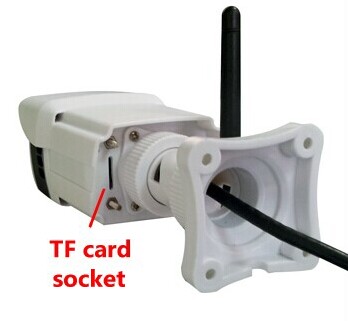

 With install bracket, can add waterproof external TF card storage module.
 Exclusive innovation design, support intelligent rotating bracket.
 Support ONVIF protocol, can provide the SDK.


Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.


Technical parameters:







Model:

R-H232N  (720P)

R-H332N  (960P)

R-H532N  (1080P)

Camera

Imaging sensor:

1/4" CMOS
 progressive scan

1/3" CMOS
 progressive scan

1/2.8" SONY
 progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
white 0.05 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Lens:

Standard with 3.0 megapixel, 3.6, 6 ,8mm
 fixed focus, lens

Day and night
  switch:

IR-CUT dual optical filters auto switch
 in day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

1pc SMD array light source+ Finland LEDIL
 light lens

Effective night
 vision distance:

5-8 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness, contrast,
 sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD&monitoring
 management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
 RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
 SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
 Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable
 break , IP address conflict, storage card
 is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
 external audio pickup

POE power
 supply:

Support POE power
 supply (optional),
 internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power input:

DC 12V±10% / POE

Power
 consumption:

1W (IR off) / 5.5 W (IR on)

1.1 W / 5.6 (IR on)

Work
 environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

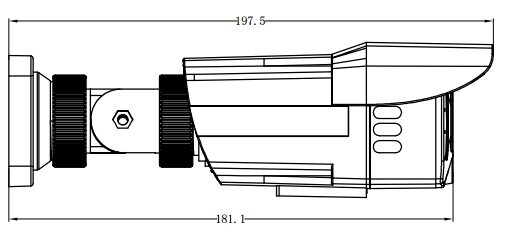

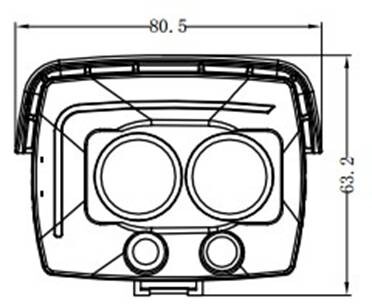

Size:

125mm x 55mm  x 50mm
