Home security wireless megapixel mini indoor IP dome camera

Model:

Home security wireless megapixel mini indoor IP dome camera

Home security wireless megapixel mini indoor IP dome camera manufacturer.

DESPCRITION:

Main feature:

* Professional design for HD network camera, small, beautiful and delicate, best for home security.

* 2 models: 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.

* Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.

* 3.0 megapixel HD lens + IR-CUT auto swith in day and night, 3.6mm, 6mm fixed lens optional,

* 2pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 5-15m, excellent performance in dark environment.

* Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

* Wireless design, DC power interface + RJ45 network interface, easy for installation and use.

* Innovate design for build-in audio pickup (external type optional).

* Optional function module: WIFI + TF card slot + Audio pick-up

* Support ONVIF protocol, can provide the SDK.

* Build-in WEB browse software.

* Free P2P for remote surveillance.

* Installation method: wall mount / ceiling mount / stand on desk.

* Size: 98.2 x 80 x 77 mm. Packing: 10 x 15 x 15 cm / GW: 340 g include power supply.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.


Technical parameters



Model:

R-H242E

R-H342N

Camera

Imaging
       sensor:

1/4" CMOS progressive scan

1/3" CMOS progressive scan

Signal
       system:

PAL / NTSC adjustable

Scanning
       mode:

Progressive scanning

Illumination:

Color 0.2 lux, black & white 0.05 lux, IR on 0 lux

Color 0.2 lux, black & white
       0.02 lux, IR
       on 0 lux

Lens:

Standard with 3.0 megapixel, 2.8 /3.6mm
       fixed focus

Day and
       night  switch:

IR-CUT dual optical filters auto switch in
       day and night

Electronic
       shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White
       balance:

Auto / manual

DNR:

3D-DNR

IR source:

2pcs SMD array light source+ Finland
       LEDIL light lens

Effective night
       vision distance:

5-15 meters

Standard
       compression

       compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
       compression:

G.711 / G.726

Audio
       bit
       rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image
       size:

1280 x 800

1296 x 976

Frame rate:

 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
       704 x 576 @ 25 fps; 640 x 360 @ 25 fps;
       352 x 88 @ 25 fps

       adjustment:

Through IE can adjust Saturation, brightness
       , contrast, sharpness

       mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD monitoring
       management
       software

Function

Storage:

Support TF card storage

Interface
       protocol:

ONVIF



Support
       protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS
       , RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
       SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP
       optional)

Intelligent alarm:

Motion detection, mask alarm, network cable break , IP
       address
       conflict, storage card is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
       external audio pickup

WIFI:

Support WIFI function

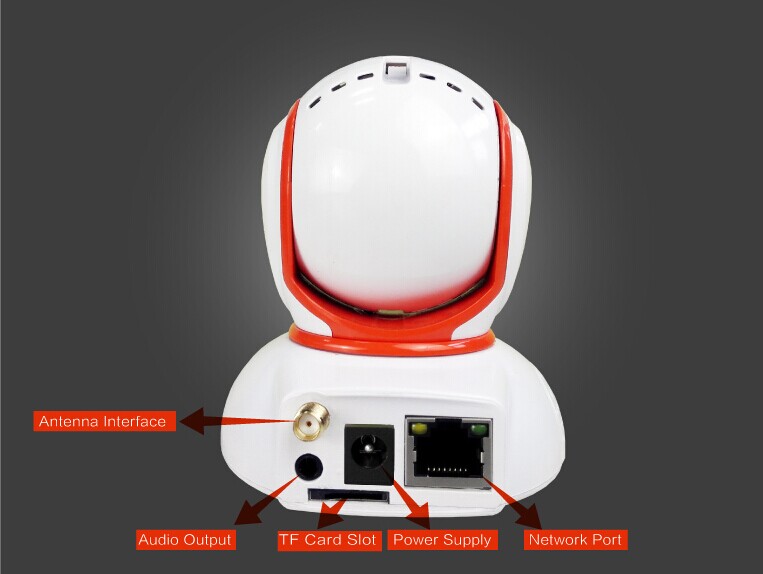

Interface

Communication
       interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
       parameter

Power
       input:

DC 12V

Work
       environment:

-35 degree ~ 60 degree ; humidity is less than 95%
       (no condensation)

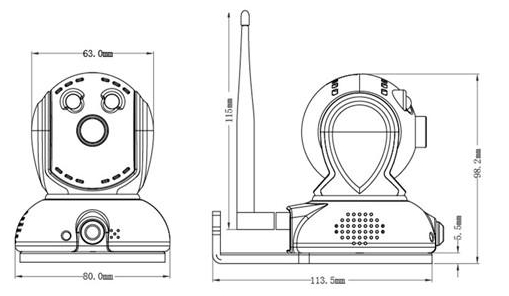

Size:

98.2 x 80 x 77 mm



Home security wireless megapixel mini indoor IP dome camera

Home security wireless megapixel mini indoor IP dome camera

Home security wireless megapixel mini indoor IP dome camera

Home security wireless megapixel mini indoor IP dome camera



Home security wireless megapixel mini indoor IP dome camera
