Low bit rate H.264 megapixel indoor cloud IP camera with motorized zoom lens

Model:

Low bit rate H.264 megapixel indoor cloud IP camera with motorized zoom lens

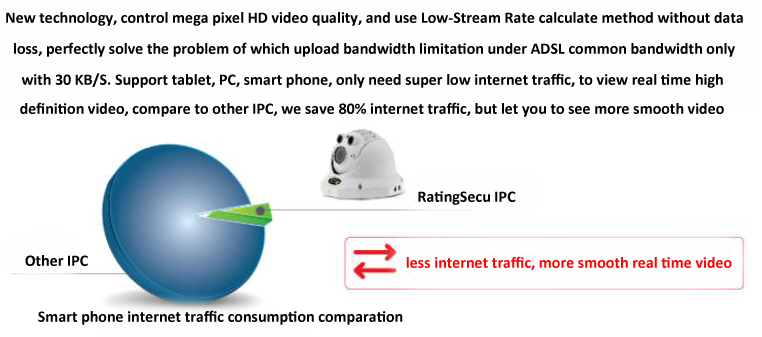

*Low bit rate platform,HD&Fluent whether local or remote

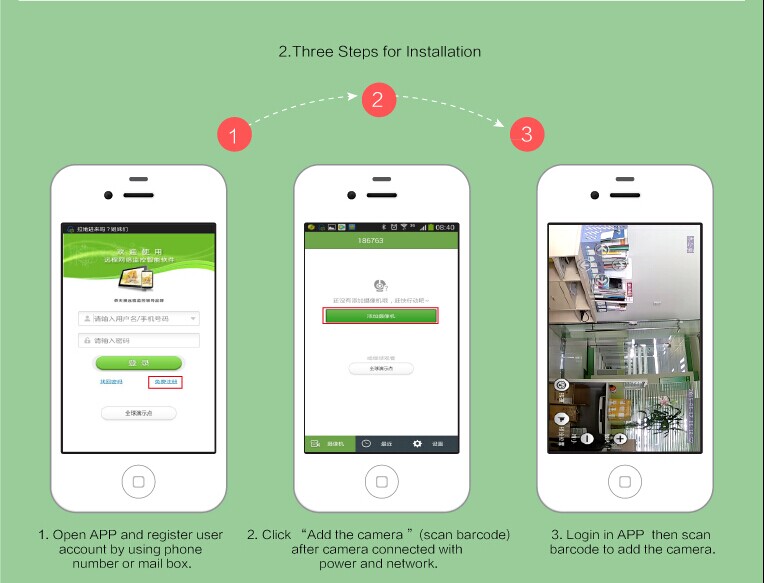

*Support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1280x960p,1280x720p
*Pan and Tilt rotating
*2.8-12mm or 6-22mm motorized zoom lens
*Support WIFI ,TF card slot, audio,speaker,POE functions

DESPCRITION:







Main feature:

(1)Professional design for HD network camera, small, beautiful and delicate, best for home security.
(2)Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make HD camera
     can works well under high temperature
(3)3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0
     megapixel, 720P progressive scan.

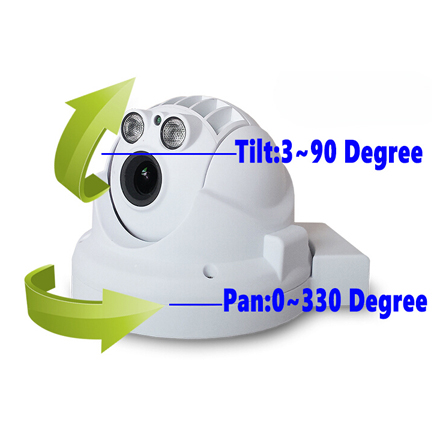

(4)Horizontal 330° rotation, rotate speed 30° / second, vertical 3° - 90° rotate, speed 20° / second.
(5)Preset position with 64 pcs programmable, 4 tour scan routes, 2 points scan.
(6)Scan speed & manual control rotate speed & preset stay time are adjustable.
(7)Will not lose internal data when power off, can manual control IR LED turn on / off.
(8)Advanced digital signal processing technology, high brightness imported SMD IR source, show the
     best HD video effects in both day and night environment.
(9)3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm, 6mm,8mm fixed lens ,
     2.8-12mm/6-22mm motorized zoom lens optional.
(10)Support 3D DNR, digital WDR,auto white balance, auto electronic shutter, auto electronic gain, real
      color reproduction, high resolution image.

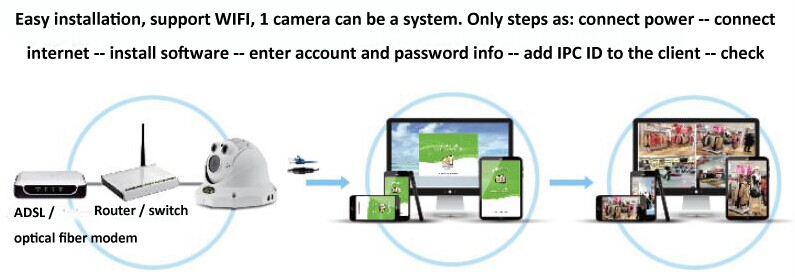

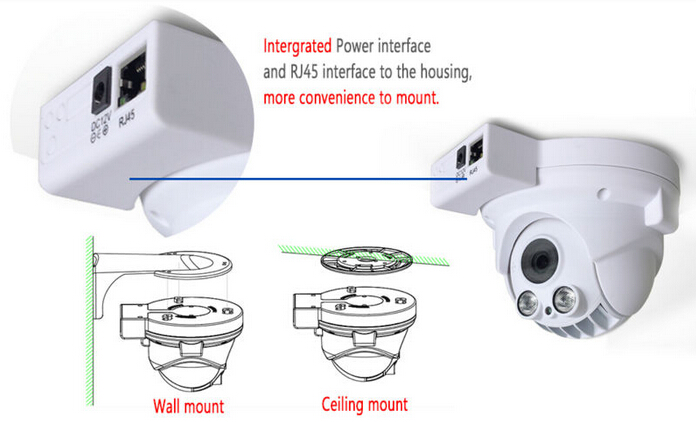

(11)Wireless design, DC power interface + RJ45 network interface, easy for installation and use.
(12)Optional function : External WIFI ,TF card Slot, audio pick-up ,POE.
(13)Support ONVIF protocol, can provide the SDK.
(14)Build-in WEB browse software.

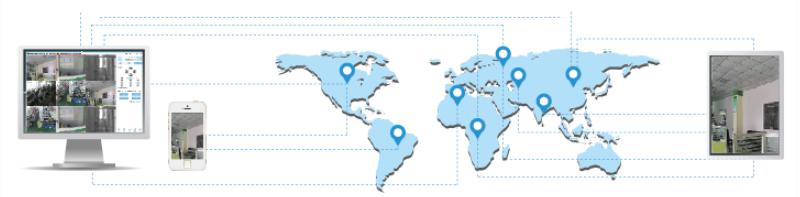

(15)Free P2P for remote surveillance.
(16)Installation method: wall mount / ceiling mount / stand on desk.
(17)Size: 131(DIA) x 95 (Height) mm. Packing: 22x18x18 cm / GW: 800g include power supply.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.



Technical parameters:


Model:

R-NL400A1 (720P)

R-NL400A3 (960P)

R-NL400A5 (1080P)

Camera

Imaging sensor:

1/4" CMOS
 progressive scan

1/3" CMOS
 progressive scan

1/2.8" SONY
 progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
white 0.05 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Lens:

Standard with 3.0 megapixel, 3.6, 6 ,8mm
 fixed focus, optional CS lens ,optional 2.8-12mm
 motorized zoom lens

Day and night
  switch:

IR-CUT dual optical filters auto switch
 in day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

2pcs SMD array light source+ Finland LEDIL
 light lens

Effective night
 vision distance:

25-35 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness, contrast,
 sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD monitoring
 management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
 RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
 SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
 Bonjour (SIP, SRTP optional)

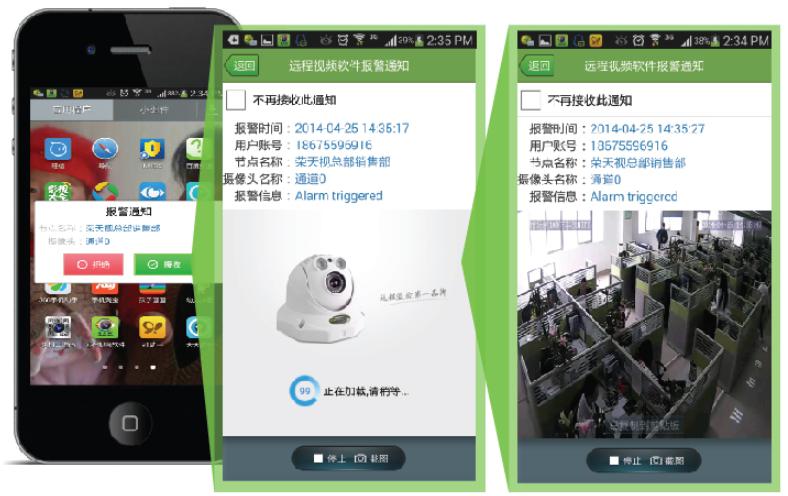

Intelligent alarm:

Motion detection, mask alarm, network cable
 break , IP address conflict, storage card
 is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
 external audio pickup

POE power
 supply:

Support POE power
 supply (optional),
 internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power input:

DC 12V±10% / POE

Power
 consumption:

1W (IR off) / 5.5 W (IR on)

1.1 W / 5.6 (IR on)

Work
 environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

Size:

Diameter131mm x height 95mm
