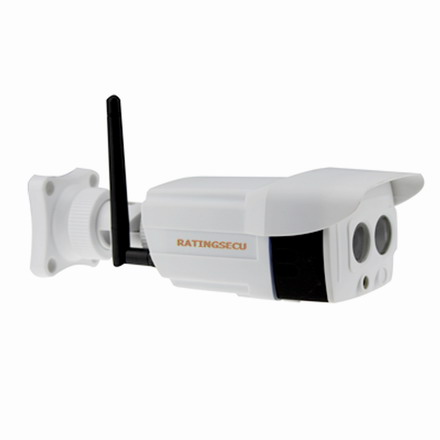

Low bit rate H.264 weaterproof outdoor cloud megapixel IP camera

Model:

Low bit rate H.264 weaterproof outdoor cloud megapixel IP camera

*Low bit rate platform,HD&Fluent whether local or remote
*Support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1280x960p,1280x720p
*3M fixed 3.6 / 6 / 8mm lens
*Weatherproof ,IP66
*1 pc SMD array IR LED, IR night vision distance 5-8M
*Support WIFI ,TF card slot, audio,speaker,POE functions

DESPCRITION:

Main feature:

(1)  Professional design for HD IP camera, small, beautiful and delicate, best for home security.
(2)  Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make hd camera can works well under high temperature
(3)  3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
(4)  Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
(5)  3 million pixel HD lens + IR-CUT auto swith in day and night, 3.6mm / 6mm / 8mm lens optional.
(6)  1pc imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 25m, excellent performance in dark environment.
(7)  Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
(8)  Innovate design for build-in audio pickup (external type optional).
(9)  POE module and WIFI module optional.
(10) With install bracket, can add waterproof external TF card storage module.
(11) Exclusive innovation design, support intelligent rotating bracket.
(12) Support ONVIF protocol, can provide the SDK.




Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.




Technical parameters:



Model:

R-HL232N  (720P)

R-HL332N  (960P)

R-HL532N  (1080P)

Camera

Imaging sensor:

1/4" CMOS
 progressive scan

1/3" CMOS
 progressive scan

1/2.8" SONY
 progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
white 0.05 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Lens:

Standard with 3.0 megapixel, 3.6, 6 ,8mm
 fixed focus, lens

Day and night
  switch:

IR-CUT dual optical filters auto switch
 in day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

1pc SMD array light source+ Finland LEDIL
 light lens

Effective night
 vision distance:

5-8 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness, contrast,
 sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD&monitoring
 management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
 RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
 SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
 Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable
 break , IP address conflict, storage card
 is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
 external audio pickup

POE power
 supply:

Support POE power
 supply (optional),
 internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power input:

DC 12V±10% / POE

Power
 consumption:

1W (IR off) / 5.5 W (IR on)

1.1 W / 5.6 (IR on)

Work
 environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

Size:

125mm x 55mm  x 50mm









Low Bit Rate Remote Surveillance Software  Introduction

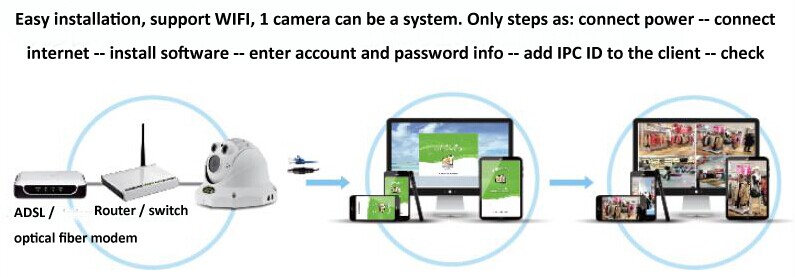

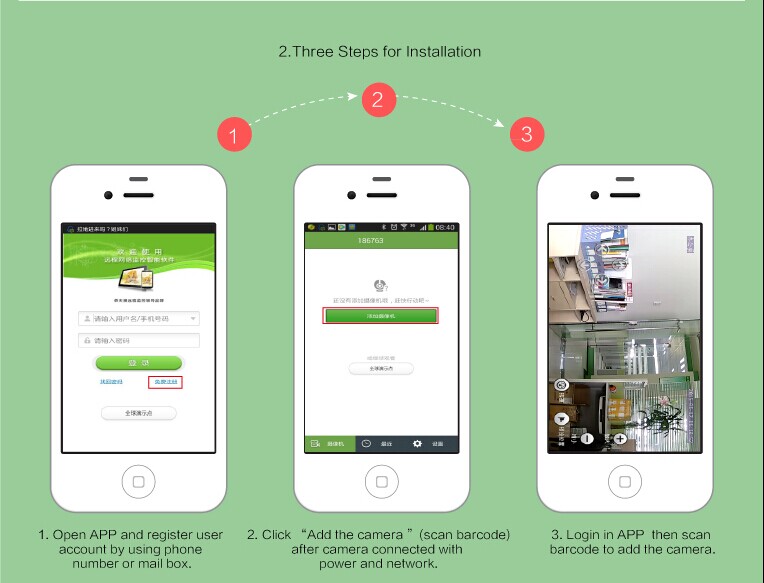

1. Installation is very easy, almost plug-and-play.

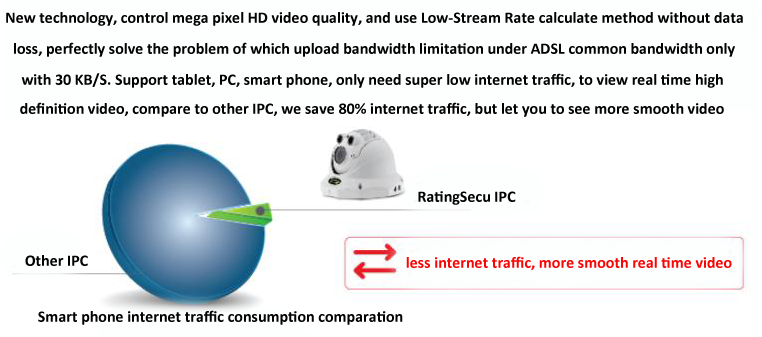

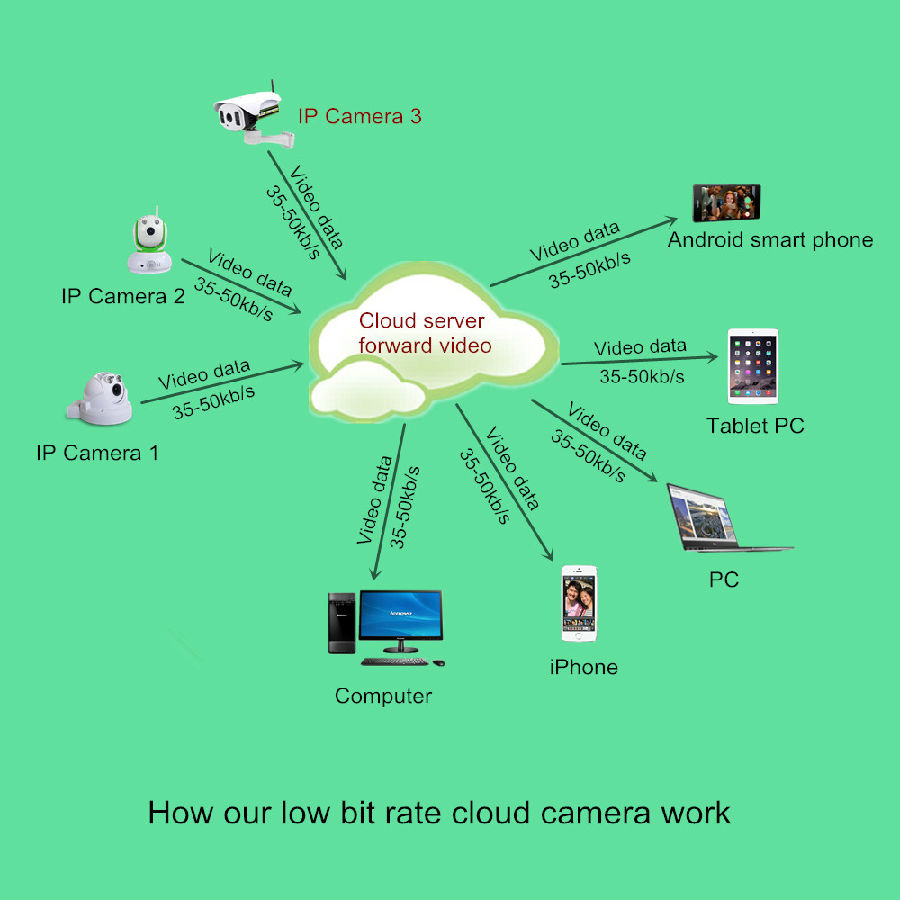

2. Low-bit rate technology, save your internet traffic but show you better HD video.





3. Support TF card recording and playback.







4. Support diferent devices like smart phone, PC, PAD.

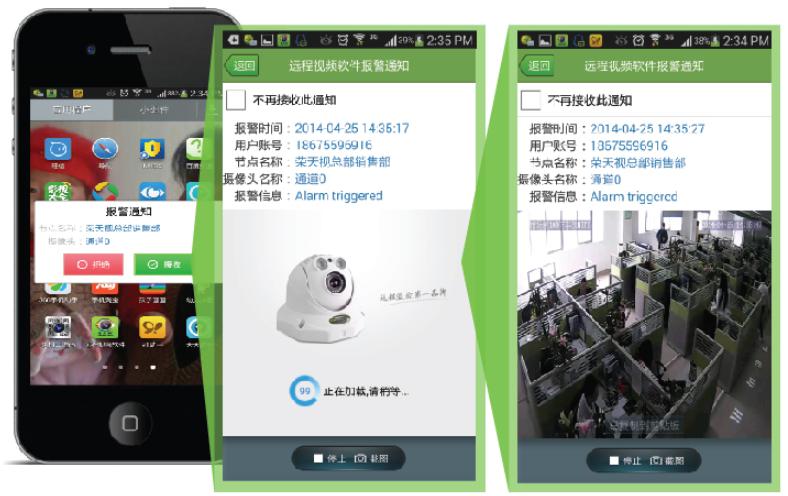

5. Motion detection alarm can send message to smart phone.

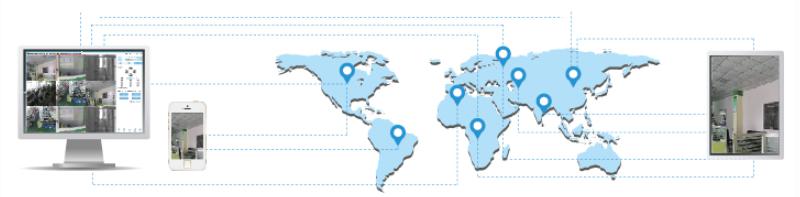

6. Multi monitoring points can be viewed by many people.
