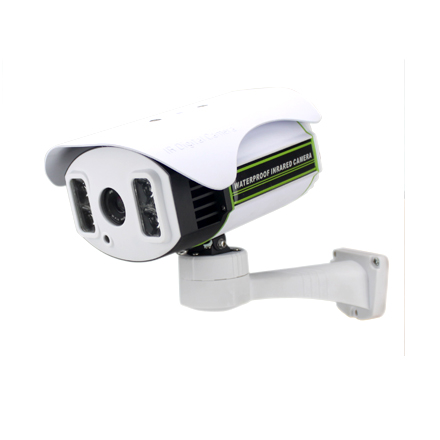

Low bit rate cloud megapixel weatherproof IP camera

Model:

Low bit rate cloud megapixel weatherproof IP camera

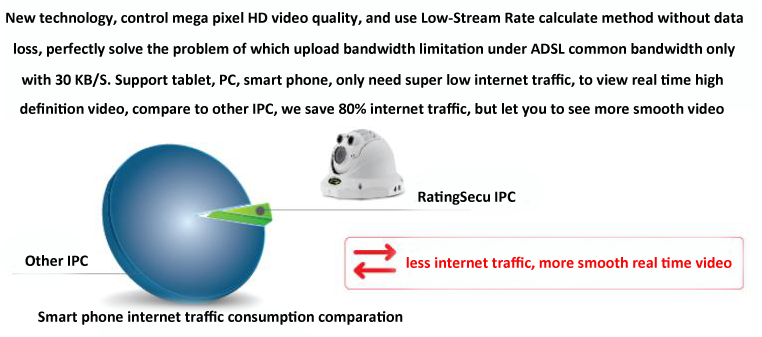

*Low bit rate platform,HD&Fluent whether local or remote
*Support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1280x960p,1280x720p
*Megapixel 2.8-12mm / 6-22mm motorized zoom lens
*Weatherproof ,IP66
*4 pcs SMD array IR LED, IR night vision distance 20-70M
*Support our smart bracket for pan & tilt
*Support WIFI ,TF card slot, audio,speaker,POE,PIR functions

DESPCRITION:

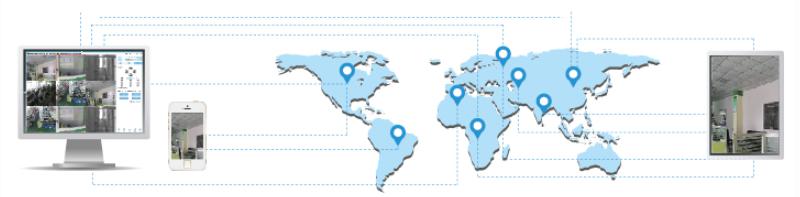

   how p2p ip cameras work

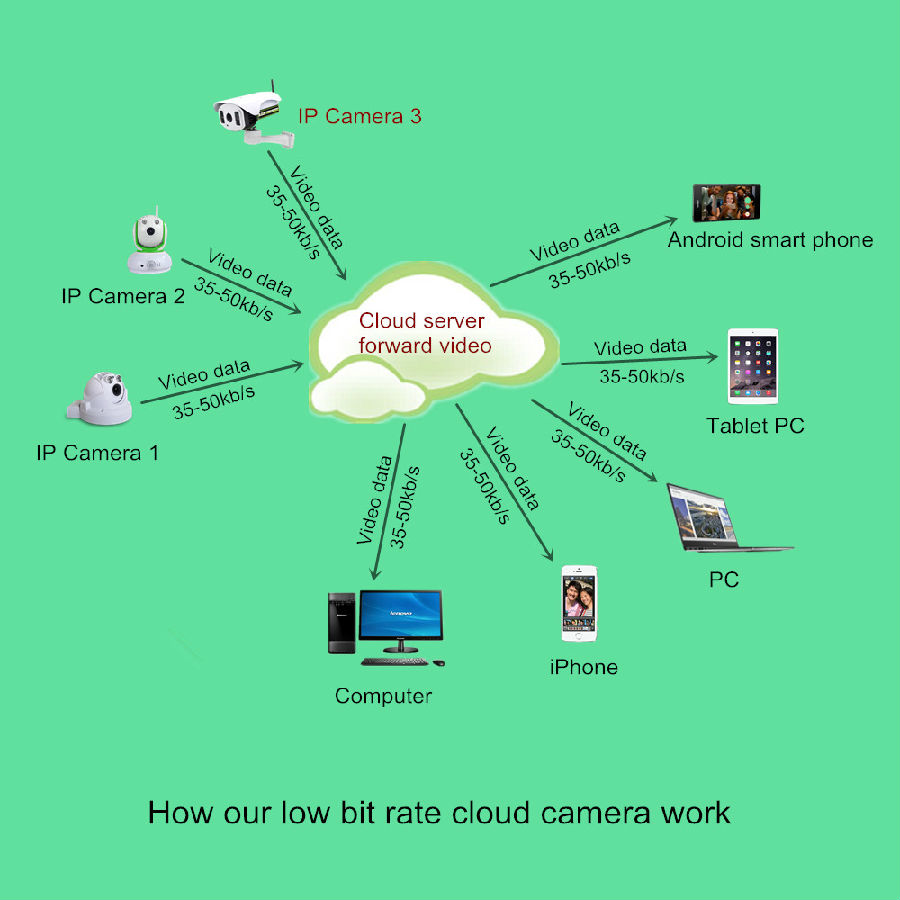

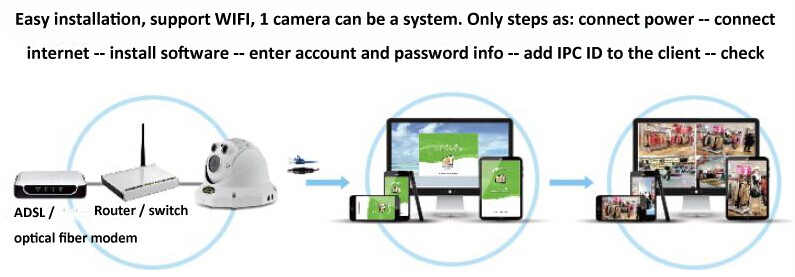

how our low bit rate cloud camera work

Main feature:

* Professional design for HD IP camera, small, beautiful and delicate.

* Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.

* 3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.

* Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.

* 3.0 Megapixel HD lens+ IR-CUT auto swith in day and night, use 2.8-12mm / 6-22 mm motorized lens.

* 4pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 100m, excellent performance in dark environment.

* Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

* Innovate design for build-in Audio Pickup, WIFI ,SD Card slot ,POE,Alarm connector (optional).

* Exclusive innovation design, can choose our intelligent rotating bracket.

* ONVIF protocol, can provide the SDK.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Technical parameters:

Model:

R-H236NV (720P)

R-H336NV (960P)

R-H536NV (1080P)

Camera

Imaging sensor:

1/4" CMOS
            progressive scan

1/3" CMOS
            progressive scan

1/2.8" SONY
            progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
           white 0.05 lux, IR on
            0 lux

Color 0.2 lux, black &
           white 0.02 lux, IR on
            0 lux

Color 0.2 lux, black &
           white 0.02 lux, IR on
            0 lux

Lens:

2.8-12mm
or 6-22mm
motorized zoom lens

Day and night
             switch:

IR-CUT dual optical filters auto switch
            in day and night

Electronic
shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

4pcs SMD array light source+ Finland LEDIL
            light lens

Effective night
            vision distance:

25-70 meters

Standard
            compression

            compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
            compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
            1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
           704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

            adjustment:

Through IE can adjust Saturation, brightness, contrast,
            sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD monitoring
            management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF

Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
            RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
            SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
            Bonjour (SIP, SRTP optional)

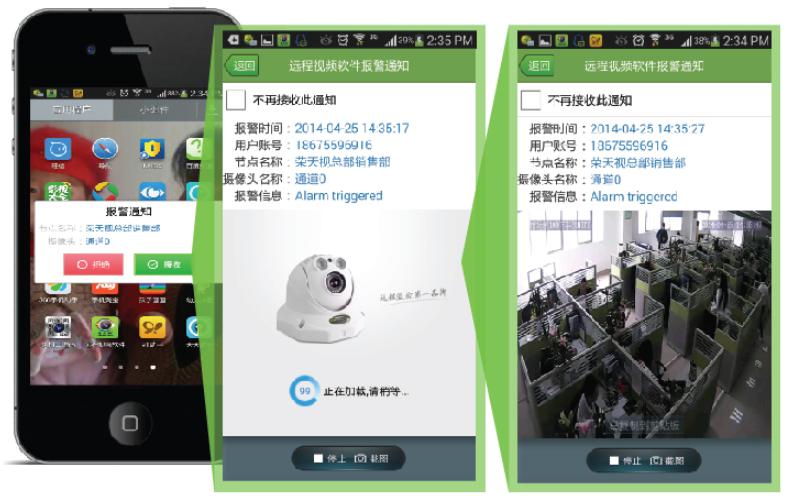

Intelligent alarm:

Motion detection, mask alarm, network cable
            break , IP address conflict, storage card
            is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
            external audio pickup

POE power
            supply:

Support POE power
            supply (optional),
            internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication
            interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
            parameter

Power input:

DC 12V±10% / POE

Power
            consumption:

1W (IR off) / 9.5 W (IR on)

1.1 W / 9.6 (IR on)

Work
            environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

Size:

155mm x  95mm  x 75mm
