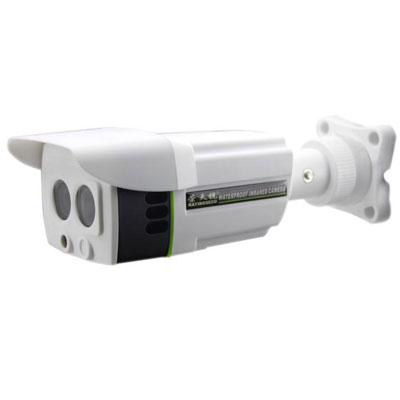

Megapixel HD IR IP Camera for indoor home security R-H232N series

Model:

Megapixel HD IR IP Camera for indoor home security R-H232N series

* Professional design for home security megapixel IR IP camera, small, beautiful.
* Support smart phone, free P2P, for remote monitoring online.
* Easy use, view your home situation online wherever you are.
* Private mold, national patent, plastic + aluminum alloy structure with excellent heat dissipation.
* 1pcs imported SMD array IR LED (Finland LEDIL light lens),
   effective IR night vision distance 10m.
* Excellent performance in dark environment, IR can works 24 hours continuously.
* 3.0 Megapixel HD lens, 4mm / 6mm / 8mm optional.

DESPCRITION:

RatingSecu        Megapixel HD IR IP Camera for Indoor

Model No.: R-H232N, R-H332N, R-H532N





Main feature:

Professional design for hd network camera, small, beautiful and delicate, best IP camera for home security.


Material: aluminum alloy + plastic, innovative patented heat dissipation structure, make hd camera can works well under high temperature
3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.


Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.


3 million pixel HD lens + IR-CUT auto swith in day and night, 3.6mm / 6mm / 8mm lens optional.


1pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 25m, excellent performance in dark environment.


Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.


Innovate design for build-in audio pickup (external type optional).
POE module and WIFI module optional.


With install bracket, can add waterproof external TF card storage module.


Exclusive innovation design, support intelligent rotating bracket.


Support ONVIF protocol, can provide the SDK.





Optional extra functions:



Internal AUDIO PICK UP device (for get voice around camera about 5 meters range)



POE module (only POE function module, need to work with POE switch)



WIFI module (for realize wireless network transmission, have WIFI antenna, test transmission range 50m)



External waterproof external TF card storage module (without TF card)



DC 12V / 1A power supply / DC 12V / 2A power supply




Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.



Technical parameters:


Model:

R-H232N

R-H332N

R-H532N




Camera

Imaging sensor:

1/4" CMOS

progressive scan

1/3" CMOS

progressive scan

1/2.8" SONY

progressive


Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux,

black & white 0.05 lux,

IR on 0 lux

Color 0.2 lux,

black & white 0.02 lux,

IR on 0 lux

Color 0.2 lux,

black & white 0.02 lux,

IR on 0 lux


 Lens:

Standard with 3 million pixel 3.6-8mm fixed focus lens

Day and night switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

white balance:

Auto / manual

DNR:

3D-DNR

Infrared source:

1pcs SMD array light source+ Finland LEDIL light lens

Effective night vision

distance:

25 meters (measured value without light condition)

Compression

standard

Image compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225


Frame rate:

1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps;

1280 x 720 @ 30 fps; 704 x 576 @ 25 fps;

 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment:

Through IE can adjust Saturation, brightness, contrast, sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P hd monitoring management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF

Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP,

DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional)

Intelligent alarm:



Motion detection, mask alarm, network cable break ,

 IP address conflict, storage card is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support external audio pickup

POE power supply

Support POE power supply (optional), internal and external type

WIFI

Support WIFI function (optional)

Interface

Communication

interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic

parameter

Power input :

DC 12V±10% / POE

Power consumption:

1W (IR off) / 3.4W (IR on )

1.1W / 3.5W (IR on )

Working environment:

-35℃ ~ 60℃, humidity is less than 95% (no condensation)

Size:

125 mm x 55 mm x 50 mm

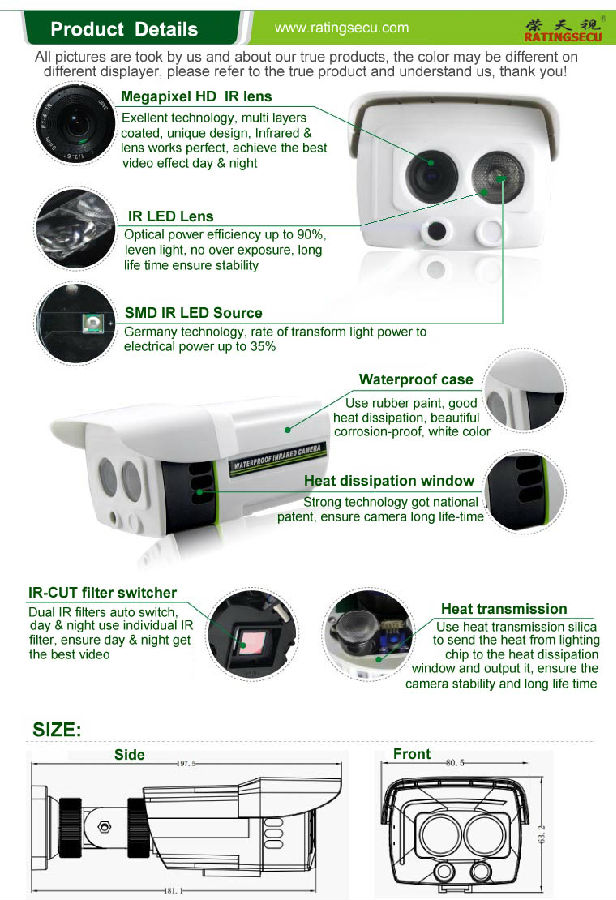

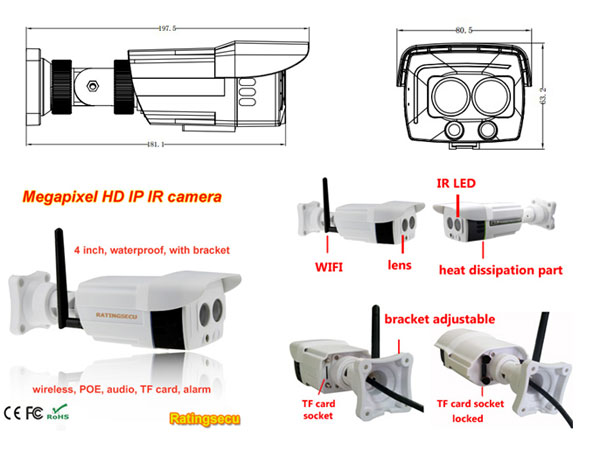

The size of picture:
