Megapixel HD IP IR Camera with Zoom Vari Focal Lens R-H236NV series

Model:

Megapixel HD IP IR Camera with Zoom Vari Focal Lens R-H236NV series

* Professional design for outdoor security megapixel IP IR camera, beautiful & easy use.
* Private mold, national patent, excellent heat dissipation, aluminum alloy structure.
* Support smart phone, free P2P, for remote monitoring online.
* 4pcs imported SMD array IR LED, effective IR night vision distance 80m, excellent performance in dark environment.
* 6-22 mm vari-focal lens.

DESPCRITION:

RatingSecu        Waterproof Megapixel HD IR IP Camera With Vari-Focal Lens

Model No.: R-H236NV, R-H336NV, R-H536NV









      Main feature:



Professional design for hd IP camera, small, beautiful and delicate.

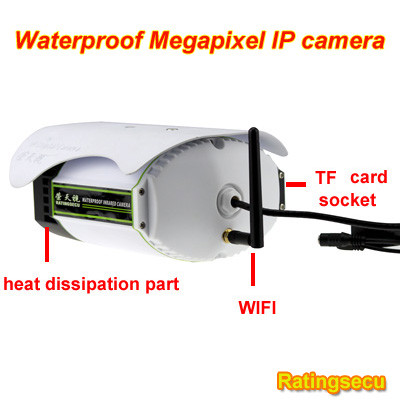

Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.



3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.



Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.



3.0 Megapixel HD CS lens+ IR-CUT auto swith in day and night, use 6-22 mm vari-focal lens.

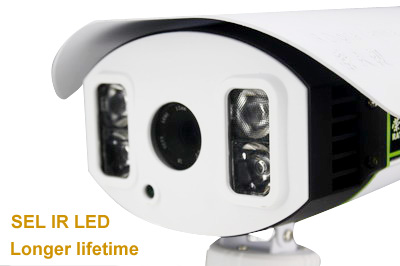

 4pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 100m, excellent performance in dark environment.



Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

Innovate design for build-in audio pickup (external type optional ), WIFI module optional.



can add waterproof external TF card storage module

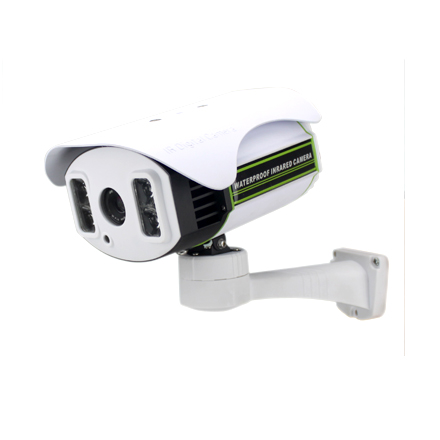

Exclusive innovation design, can choose our intelligent rotating bracket.



ONVIF protocol, can provide the SDK.





Optional extra functions:



Internal AUDIO PICK UP device (for get voice around camera about 5 meters range)



WIFI module (for realize wireless network transmission, have WIFI antenna, test transmission range 50m)



External waterproof external TF card storage module (without TF card)



Common fixed bracket / 255 degrees rotating bracket



DC 12V / 2A power supply





Optional back-end products for the system:



IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.





Technical parameters:



Model:

R-H236NV

R-H336NV

R-H536NV

Camera

Imaging sensor:

1/4" CMOS progressive scan

1/3" CMOS progressive scan

1/2.8" SONY progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black & white 0.05 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Lens:

Standard with 6-22 mm vari-focal lens

Day and night  switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

4pcs SMD array light source+ Finland LEDIL light lens

Effective night vision distance:

100 meters (measured value without light condition)

Standard compression

Image compression:

H.264

Video bitrate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio compression:

G.711 / G.726

Audio bitrate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment:

Through IE can adjust Saturation, brightness, contrast, sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P hd monitoring management software

Function

Storage:

Support external TF card storage

Interface protocol:

ONVIF

Support protocol:

TCP / IP, ICMP , HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1 x, QoS, IPv6, Bonjour ( SIP, SRTP optional )

Intelligent alarm:

Motion detection, shadow alarm, network cable break, IP address conflict, the full of storage card, the wrong of storage card

Audio pickup:

Can add internal audio pickup, also support add external audio pickup

POE power supply:

Non support

WIFI:

Support WIFI function (optional)

Interface

Communication interface:

1pc RJ45 10M/100M Adaptive Ethernet ports

Basic parameter

Power input:

DC 12V±10%

Power consumption:

1W (IR off) / 9.5W (IR on)

1.1W / 9.6W (IR on)

Work environment:

-35℃ ~ 60℃, humidity is less than 95% (no condensation)

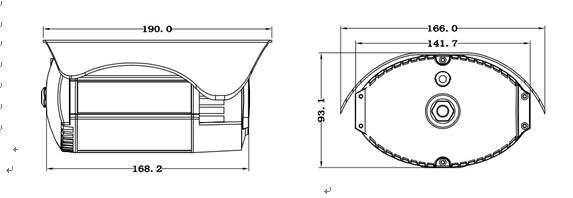

Size:

155 mm x 95 mm x 75 mm
