Home >>Product>>Megapixel HD IP Camera>>Megapixel HD IP Camera

Mini Outdoor PTZ IP Dome Cameras

Model:

Mini Outdoor PTZ IP Dome Cameras

*Free P2P,support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, dual streams
*Resolution :1920x1080p,1280x960p,1280x720p
*Pan and Tilt rotating
*Full metal ,IP66 waterproof
*2.8-8mm auto focus zoom lens or fixed lens
*IR_CUT dual optical filters for day / night
*Support WIFI ,TF card slot, audio,POE functions (optional)

DESPCRITION:


Main feature:



*Professional design for HD network camera, small, beautiful and delicate, best for security.


*Material: Full metal ,IP66 waterproof


*3 models: 2.0 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.

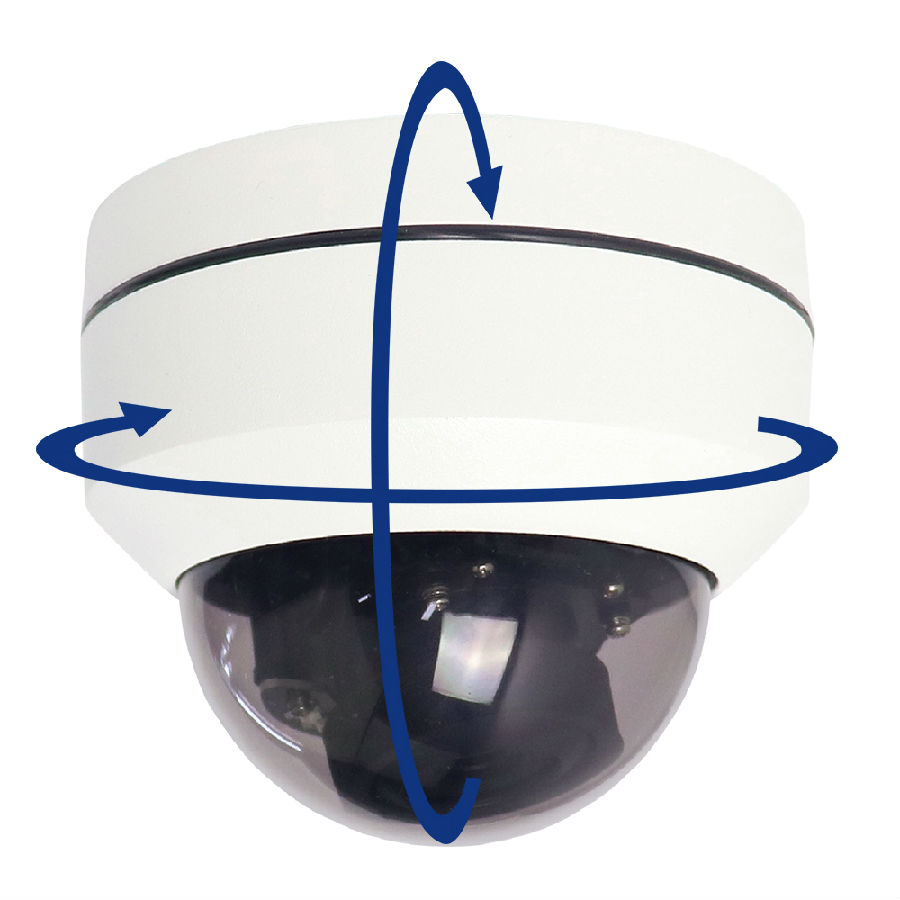

*Horizontal 330° rotation, rotate speed 30° / second, vertical 3° - 90° rotate, speed 20° / second.


*Preset position with 64 pcs programmable, 4 tour scan routes, 2 points scan.


*Scan speed & manual control rotate speed & preset stay time are adjustable.


*Will not lose internal data when power off, can manual control IR LED turn on / off.


*Advanced digital signal processing technology,4pcs IR, show the best HD video effects in both day and night environment.


*3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm fixed lens ,2.8-8mm zoom lens optional;


*Support 3D DNR, digital WDR,auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.


*Wireless design, DC power interface + RJ45 network interface, easy for installation and use.


*Optional function : WIFI ,TF card Slot, audio jack ,POE;


*Support ONVIF protocol, can provide the SDK.


*Build-in WEB browse software.


*Free P2P for remote surveillance.

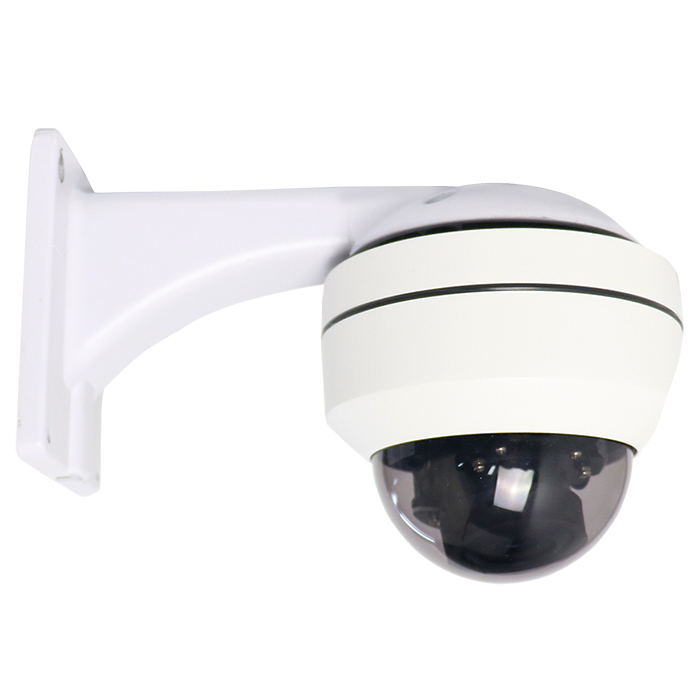

*Installation method: wall mount / ceiling mount / stand on desk.


*Size: 108(DIA) x 100 (Height) mm.





Technical parameters:



Model:

R-MQ201 (720P)

R-MQ203E (960P)

R-MQ205E(1080P)

Camera

Imaging sensor:

1/4" CMOS
 progressive scan

1/3" CMOS
 progressive scan

1/2.8" SONY
 progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
white 0.05 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Lens:

Standard with 3.0 megapixel, 3.6mm
 fixed focus, optional 2.8-8mm
auto focus lens

Day and night
  switch:

IR-CUT dual optical filters auto switch
 in day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

10pcs light source

Effective night
 vision distance:

10 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness, contrast,
 sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P APP;monitoring
 management software

Function

Storage:

Support TF card storage( optional)

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
 RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
 SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
 Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable
 break , IP address conflict, storage card
 is full, storage device is wrong

Audio :

Can add audio jack

POE power
 supply:

Support POE power
 supply (optional),
 internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power input:

DC 12V±10% / POE

Power
 consumption:

1W (IR off) / 5.5 W (IR on)

1.1 W / 5.6 (IR on)

Work
 environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

Size:

Diameter108mm x height 100mm
