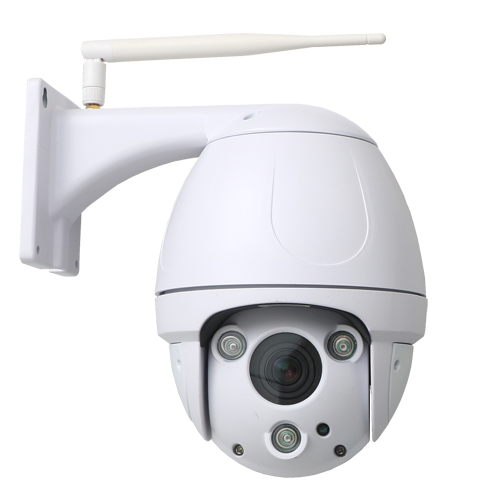

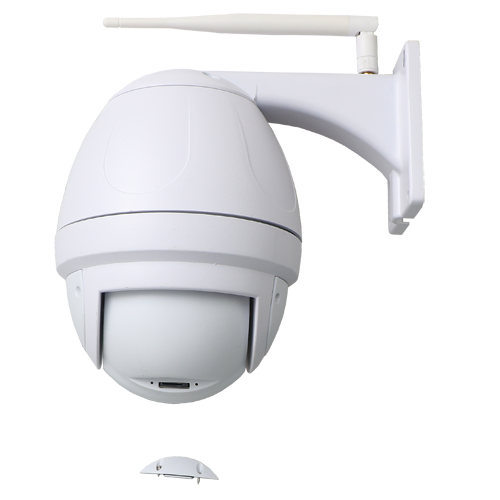

Wireless Mini Outdoor Speed Dome Camera

Model:

Wireless Mini Outdoor Speed Dome Camera

*Free P2P,support smart phone, PC ,tablet PC remote monitoring view
*H.264 compression ,25/30 frames ,real time HD, 3streams
*Resolution :1920x1080p,1280x960p,1280x720p
*Pan and Tilt rotating,Preset ,tour scan
*2.8-12mm/6-22mm auto focus lens or fixed 6/8mm lens
*IR_CUT dual optical filters for day / night
*Support WIFI ,TF card slot, audio jack ,POE functions

DESPCRITION:



                        Wireless Waterproof Speed Dome Camera





Main feature:



  1. Private mold, 4.5" housing, housing rotate with lens together.



2. IP66 waterproof level, External dialcode switch for set address code / baud rate, needn't to open camera  housing.



3. 3 pcs imported SEL powerful SDM array IR source+ Finland LEDIL lens, effective night.



4. Vision distance is 60 meters in dark environment. IR LED with different illuminate angle, LED auto switch separately depend on the lens zoom.



5. Automatically recognize  protocol of PELCO D / PELCO P.



6. 128 preset, 4 tour routes, tour scan speed is adjustable, can set stay time for preset positions.



7. Unique waterproof design for inlet wire, effectively avoid the water run into the housing, prevent the water run to machine if user use wrong installation.



8. Use silicone gasket, aluminum alloy housing and external waterproof fan, built-in semiconductor cooling device can auto control the temperature, excellent heat    dissipation system ensure its stability, this design already got national patent certificate also.



9. Wall mount / pendent mount bracket is optional.



10.Support 1080P,960P,720P, support ONVIF protocol.support P2P .



11.Standar with Wifi and TF card slot , Optional function: POE, audio / Alarm interface , 2.8-12mm/6-22mm motorized zoom lens.



12.Medium speed: horizontal rotation speed is 60°/sec, vertical rotation speed is 40°/sec.





Technical parameters:


Model:

R-N500A1 (720P)

R-N500A3 (960P)

R-N500A5 (1080P)

Camera

Imaging sensor:

1/4" CMOS
 progressive scan

1/3" CMOS
 progressive scan

1/2.8" SONY
 progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black &
white 0.05 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Color 0.2 lux, black &
white 0.02 lux, IR on
 0 lux

Lens:

Standard with 3.0 megapixel, 3.6/ 6 mm
 fixed lens ,optional 2.8-12mm/6-22mm auto focus zoom lens

Day and night
  switch:

IR-CUT dual optical filters auto switch
 in day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000
 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

3pcs SMD array light source+ Finland LEDIL
 light lens

Effective night
 vision distance:

50-70 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps;
 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness, contrast,
 sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P ,monitoring
 management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
 RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
 SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
 Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable
 break , IP address conflict, storage card
 is full, storage device is wrong

Audio :

support external audio jack (optional)

POE power
 supply:

Support POE power supply (optional),
 internal and external type

WIFI:

Support WIFI function

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power input:

DC 12V±10%

Work
 environment:

-35℃; - 60℃, humidity is less than 95% (no condensation)

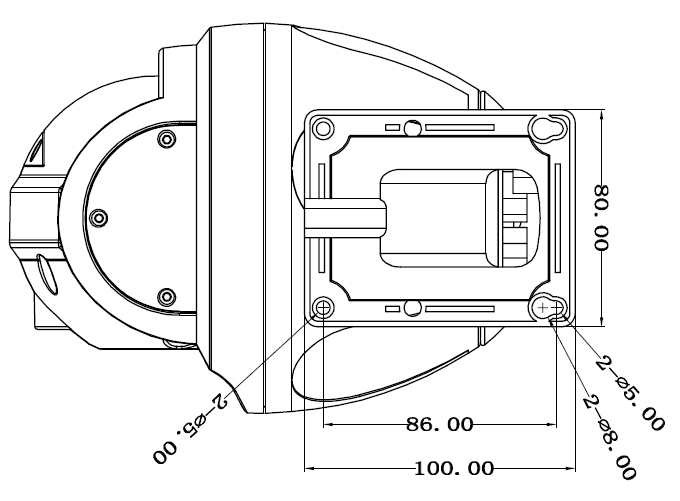

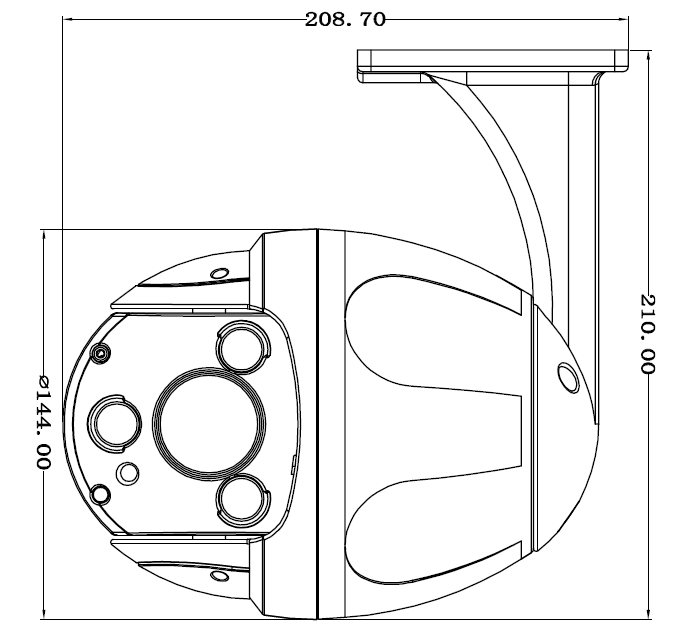

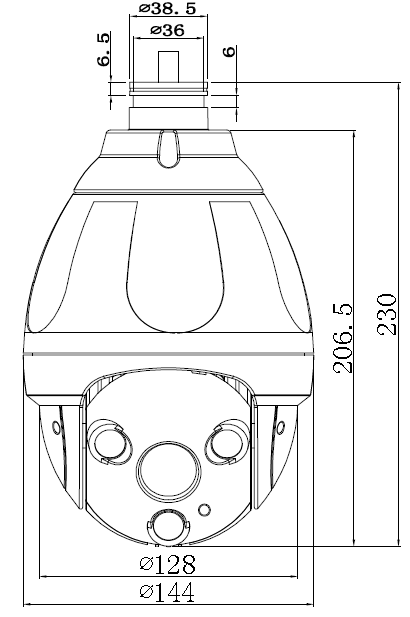

Size:

Diameter164mm x height 166mm (without bracket)
