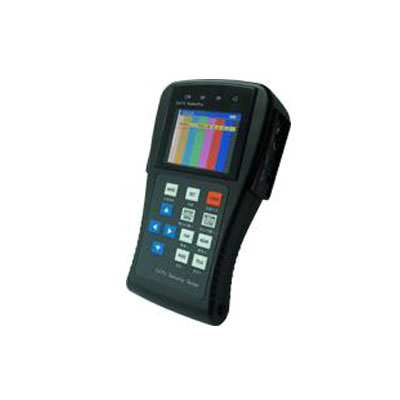

RATINGSECU CCTV Tester RTS-321

Model:

RATINGSECU CCTV Tester RTS-321

This CCTV tester is a multi-functions tester, it's a necessary tool and good assistant for both video monitory project constructors and testers. It can testing the camera image, mechanical feature of high speed Dome and PTZ.

DESPCRITION:

High definite LCD display + PTZ controller + image producer+ network cable testing function

This CCTV tester is a multi-functions tester, it's a necessary tool and good assistant for both video monitory project constructors and testers. It can testing the camera image, mechanical feature of high speed Dome and PTZ, connect situation of network cable. Through simple OSD menu, it can help us to solve many complicated problems in working scenes. It's can analyze scenes situation fast and effective, so make the installation and testing complete fast, but this is hard before without the tester.

Application Area:
Video monitoring projects installation and maintain
High speed Dome camera testing and camera testing
Transmission channel testing of video
Control PTZ protocol

Features:
2.8" TFT-LCD screen, English menu, display signal system
Test video signal strength; Video Generating, PAL/NTSC multi-system color bar video generator (seven-system switchable, transmit/receive seven-system color imagines)
PTZ control and testing function, support kinds of communication modes and control protocol
Test LAN cable, measuring the connecting status; display the sequence of connection and the NO. of the LAN cable.
Test UTP cable connection status and display in the screen, scan RS485 communication address
Screen Brightness / Contrast / Color Saturation are adjustable
Produce video signal function, can independently output one video testing signal
RS485 protocol testing function, can display RS485 protocol data from control equipment
Power supply: by power and battery
Low power consumption, auto stand by can save power, it's can display battery data
Built in Lithium Ion Polymer Battery (3.7V DC2800mAh), can continuously works for 11 hours for normal use after charging for 4 hours.
DC 12V/1A emergency power output, can supply power to camera for short time
Test audio from the front-end pickup device

Tester Data:

VIDEO SIGNAL TESTING

Video mode:

PAL / NTSC auto adjust

Display screen:

2.5 inch LCD color display screen,  960 X 240 resolution

Video input:

1 BNC isolation input

Video output:

1 BNC drive output

PTZ CONTROL TESTING

Communication port:

Support RS323, RS422, RS485 at the same time

Communication protocol:

Compatible with various protocols: Pelco_D, Pelco_P,

 Samsung, Panasonic, Minking, Vido, Yaan etc.

Baud rate:

2400, 4800, 9600, 19200

OTHER FUNCTIONS

Network wire testing:

Can test any cable, and the connect situation can be displayed on screen

Video signal producer:

Can independently output one video testing signal

RS485 protocol testing:

Can receive and display RS485 protocol data from control equipment

Operating menu:

Chinese/English OSD menu

Keyboard:

English / Chinese operate keyboard, number keys

POWER

Power supply:

DC 12V

Battery supply:

Built in Lithium Ion Polymer Battery (3.7V DC2800mAh),

 can continuously works for 11 hours for normal use after charging for 4 hours.

Charging:

Need 4 hours to charging, and can use 11 hours after full charging.

Save power function:

Low power consumption, auto stand by can save power, it's can display battery data

OTHER DATA

Working temperature:

-30°C ~ +70°C

Working humidity:

30% ~ 90%

Size:

170mm(L) X 99mm(w) X 48mm(H)

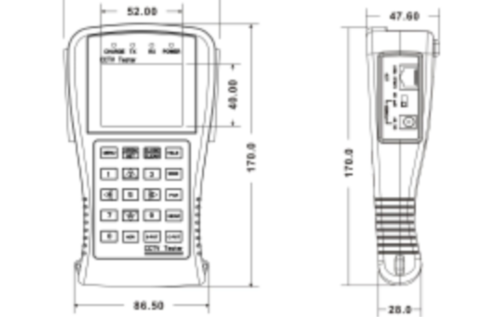

SIZE(cm):

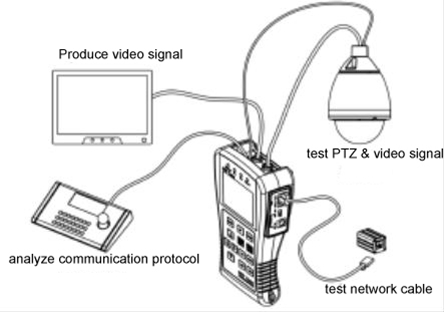

FUNCTION:
