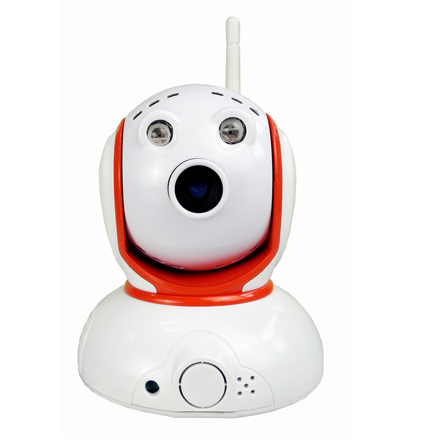

wireless mini pan tilt indoor IP dome camera

Model:

wireless mini pan tilt indoor IP dome camera

*Free P2P ,Support smart phone,free P2P for remote monitoring online
*H.264 compression, 25frames ,real time HD,2 streams
*Resolution :1280x960p ,1280x720p
*3.0 Megapixel HD 3.6mm fixed lens
*IR_CUT dual optical filters for day / night
*Pan and Tilt rotating
*Support WIFI ,TF card slot ,audio,speaker functions
*Mini size :98.2x80x77mm

DESPCRITION:









Main feature:

(1)Professional design for HD network cameras, small, beautiful and delicate, best for   home ,office,stores security.
(2)2 models: 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.

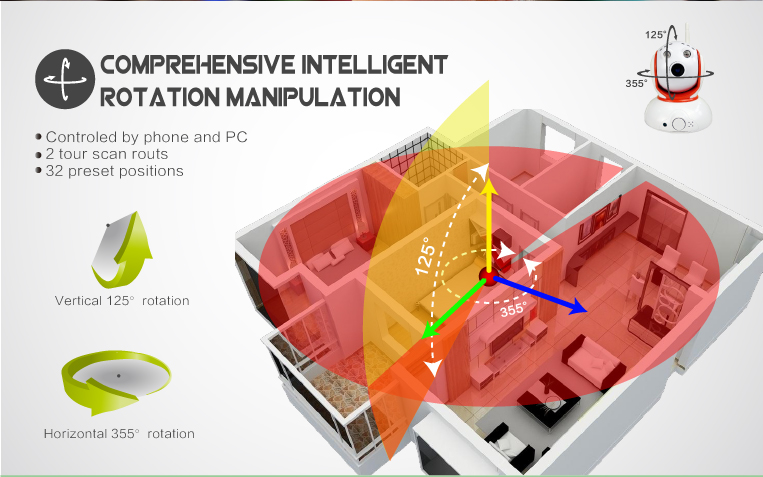

(3)Horizontal 355° rotation, rotate speed 30° / second, vertical 125°, rotate speed 20° / second.
(4)32 preset positions, 2 tour scan routes, 2 points scan.
(5)Can set preset stay time, scan speed, rotating speed.

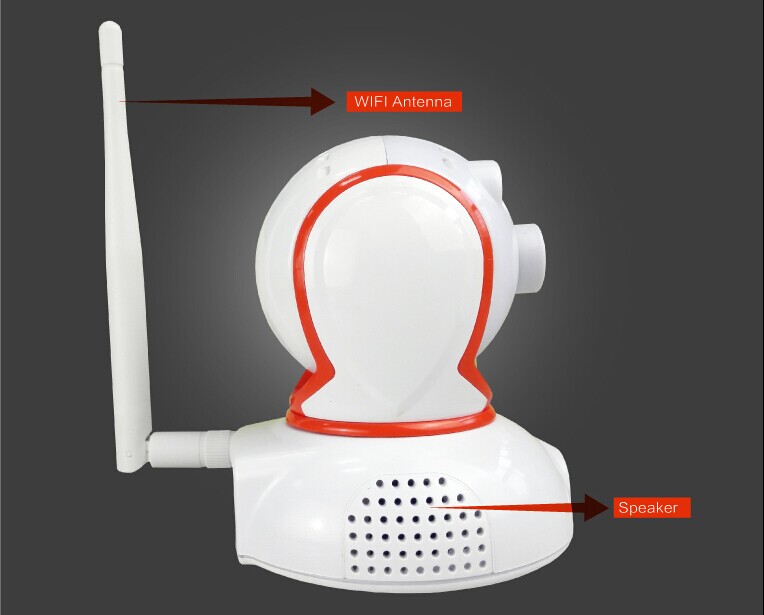

(6)With WIFI ,TF card slot, speaker, audio functions

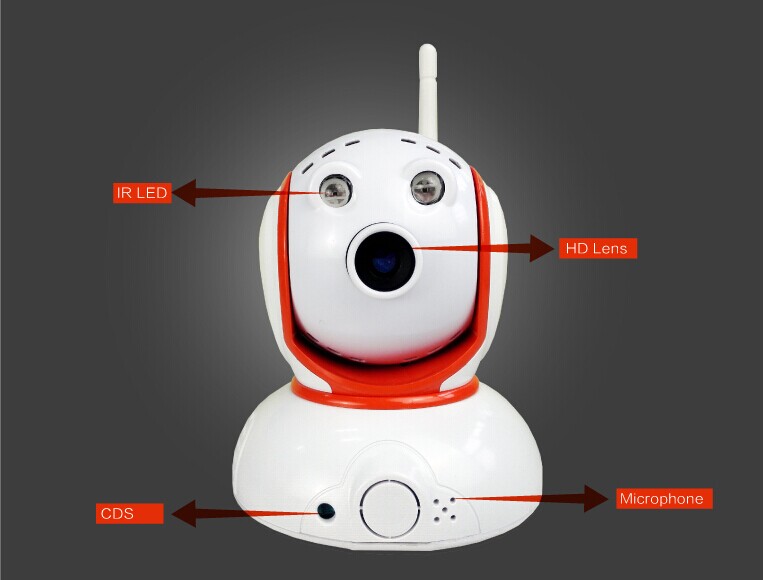

(7)Advanced digital signal processing technology, high brightness imported SMD IR source, show the best HD video effects in both day and night environment.
(8)3.0 megapixel HD lens + IR-CUT auto switch in day and night, 3.6mm, 2.8mm fixed lens optional,
(9)Support 3D DNR, digital WDR,auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

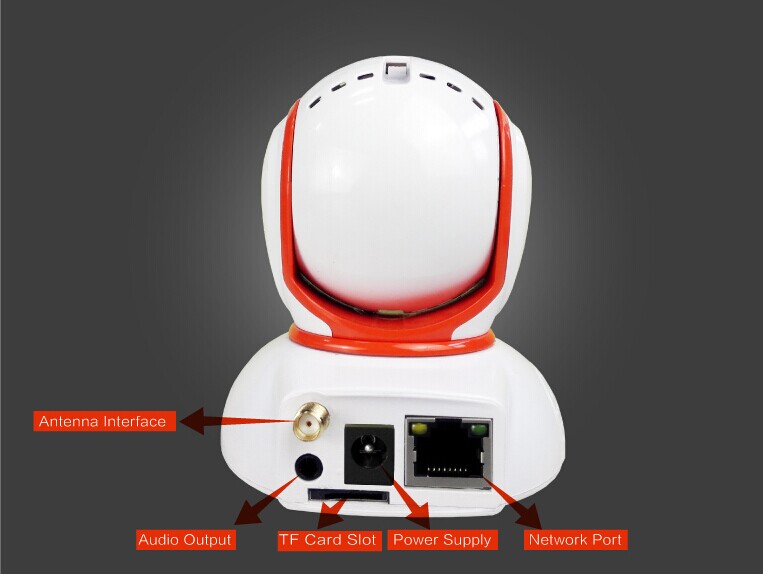

(10)Wireless design, DC power interface + RJ45 network interface, easy for installation and use.

(11)Innovate design for build-in audio pickup ,TF card slot ,Speaker WIFI (internal or external).
(12)Support ONVIF protocol, can provide the SDK.
(13)Build-in WEB browse software.
(14)Free P2P for remote surveillance.

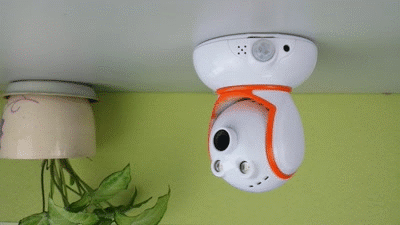

(15)Installation method: wall mount / ceiling mount / stand on desk.

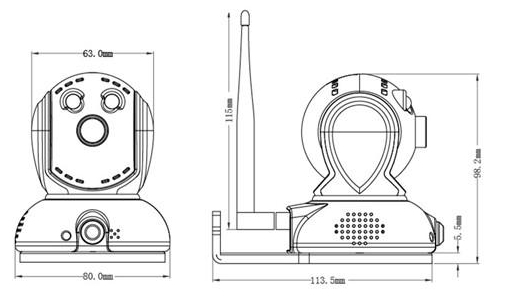

(16)Size: 98.2 x 80 x 77 mm. Packing: 10 x 15 x 15 cm / GW: 340 g include power supply.


Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.



Technical parameters:



Model:

R-N300A1

R-N300A3

Camera

Imaging
 sensor:

1/4" CMOS progressive scan

1/3" CMOS progressive scan

Signal
 system:

PAL / NTSC adjustable

Scanning
 mode:

Progressive scanning

Illumination:

Color 0.2 lux, black & white 0.05 lux, IR on 0 lux

Color 0.2 lux, black & white
 0.02 lux, IR
 on 0 lux

Lens:

Standard with 3.0 megapixel, 2.8 /3.6mm
 fixed focus

Day and
 night  switch:

IR-CUT dual optical filters auto switch in
 day and night

Electronic
 shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White
 balance:

Auto / manual

DNR:

3D-DNR

IR source:

2pcs SMD array light source+ Finland
 LEDIL light lens

Effective night
 vision distance:

5-15 meters

Standard
 compression

 compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio
 compression:

G.711 / G.726

Audio
 bit
 rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image
 size:

1280 x 800

1296 x 976

Frame rate:

 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
 704 x 576 @ 25 fps; 640 x 360 @ 25 fps;
 352 x 88 @ 25 fps

 adjustment:

Through IE can adjust Saturation, brightness
, contrast, sharpness

 mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P HD monitoring
 management
 software

Function

Storage:

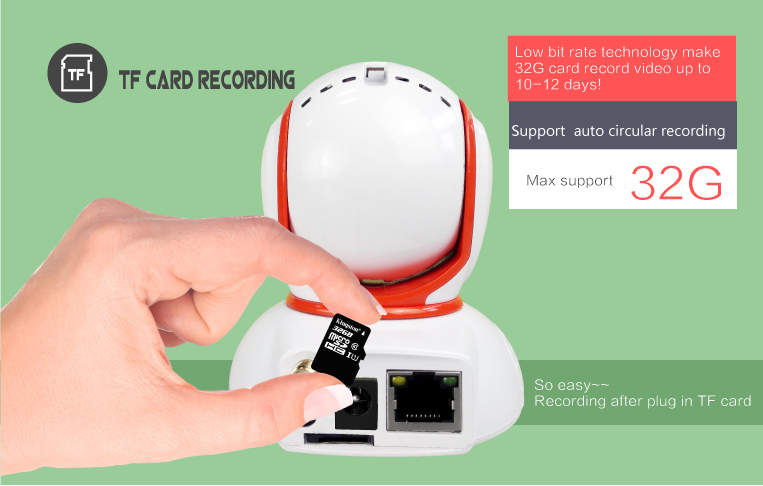

Support TF card storage

Interface
 protocol:

ONVIF



Support
 protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS
, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
 SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP
 optional)

Intelligent alarm:

Motion detection, mask alarm, network cable break , IP
 address
 conflict, storage card is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support
 external audio pickup

WIFI:

Support WIFI function

Interface

Communication
 interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic
 parameter

Power
 input:

DC 12V

Work
 environment:

-35 degree ~ 60 degree ; humidity is less than 95%
 (no condensation)

Size:

98.2 x 80 x 77 mm
