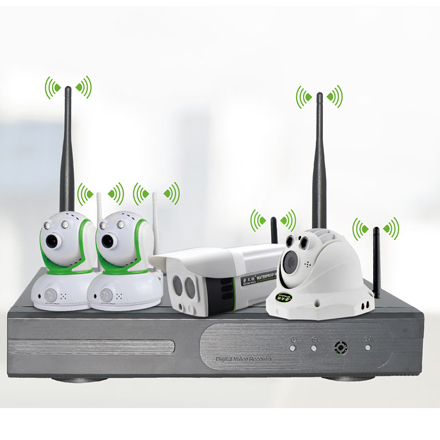

4CH 960P Wireless NVR kits 2.4GHz (Built-in router ,just plug and play)

Model:

4CH 960P Wireless NVR kits 2.4GHz (Built-in router ,just plug and play)

*4CH 960P wireless NVR (Built-in router,just plug and play)
*4pcs 960P wireless IP digital camera
*H.264 compression ,25/30 frames ,real time HD
*Camera with 3.0Megapixel HD 3.6mm/6mm fixed lens
*Camera IR night vision 10-20M
*Camera with IR_CUT dual optical filters for day / night
*Support ONVIF, P2P for remote view

DESPCRITION:

Main feature:


1. 4pcs 1.3Megapixel HD wireless IP camera + 1pc 4ch wireless HD NVR


2. Built-in high performance wireless router and 2 standard all round direction high

        power antennas. Support 802.11b/g/n protocol,150Mbps


3. Connect NVR and camera automatically after plug in, don't need any setting or

        operation


    4. No need WIFI matching, with long transmission distance and stable performance,

        free from interference of other WIFI devices.


5. Use  specialized wireless connect technology , faster ,stabler and don’t interfere

        with other wireless signal .


6. P2P remote monitoring enables remote viewing easily without any further setting.

    7. PC,tablet and smart phone(including Android and IOS system) are available to

        view locally and remotely


8. NVR has four RJ45 network interface ,one for network router, another three

        interface for IP cameras when Distance more than 30meters .


9. Support one 4TB hard disk


10. Three different camera case  for optional ,all with IR_CUT dual optical filters, 3

           megapixel HD lens ,SMD array IR LED, perfect IR night vision


11. Support 3D-DNR ,auto white balance ,auto electronic shutter ,AGC , sharpness .

    12. Support ONVIF protocol , compatible with most of the manufacturer's major HD IP

           cameras, can provide SDK .

    13. Multi-languages and  online upgrading supported.









4CH Wireless NVR Parameter Technology



Processor

Professiona Huawei hisilicon Industrial Processor

Operating System

Embedded Linux OS

Video In

Network Video In

4CH



Network Bandwidth

20Mbps

Video Out

HDMI Out

1 CH,Resolution:1024x768,1366x768,

1440x900,1920x1080p



VGA Out

1 CH,Resolution:1024x768,1366x768,

1440x900,1920x1080p

Video Coding

 Decoding

Parameter

Video Resolution

720P/960P



Sync Playback

4 CH

Recording

Record/Capture Mode

Manual,Schedule,Motion Detection,

Alarm Trigger Mode



Playback Mode

Instant Playback,Regular Playback,

Event Playback



Backup Mode

Regular Backup

HDD

Type

1*SATA Port



Max. Capacity

4 TB HDD

External Port

Network Port

4*RJ45 10M/100M Self-adaptive

network Ports,2*WIFI Ports



USB Port

2*USB 2.0 Ports

Network

Network Protocal

UPnP(Plug and On)、SMTP(Email)、

PPPoE、DHCP Etc.







Others

Power Supply

DC12V 3A



Power (HDD-Excluded)

<5w



Working Temperature

-10°C ;--+55°C;



Working Humidity

10%--90%



Size

257mm(L)X 210mm(W)X 45mm(H)



Weight         (HDD-Excluded)

<1Kg









Wireless WIFI IP HD Camera Technical Parameters



Camera

 Imaging sensor:

1/3" Low illumination 1.3M CMOS

 Signal system:

PAL / NTSC adjustable

 Scanning mode:

Progressive scanning

 Illumination:

Color 0.2 lux, black & white 0.02 lux,

IR on 0 lux

 Lens:

Standard with 3.0 megapixel,

3.6/6/8mm fixed lens

 Day and night switch:

IR-CUT dual optical filters auto

switch in day and night

 Electronic shutter:

Manual / auto

( adjustable, 1 / 25 ~ 1 / 4000 seconds)

 White balance:

Auto / manual

 DNR:

3D-DNR

 IR :

SMD array light source

Finland LEDIL light lens

 Effective night

 vision distance:

10-20 meters

Standard

compression

 Main Processor

Huawei Hisilicon 3518E

 Image compression:

H.264

 Video bit rate:

128 Kbps -- 8 Mbps;

CBR / VBR adjustable

 Audio compression:

G.711 / G.726

 Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


 Max image size:

1280 x960

 Frame rate:

1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;

640 x 360 @ 25 fps; 352 x 288 @ 25 fps

 Image adjustment:

Through IE can adjust Saturation,

brightness, contrast, sharpness

 Image mirroring:

Horizontal mirroring, vertical mirroring

 Scene:

Auto, indoor, outdoor

Function

 Wifi:

Standard Wifi Module+Antenna

 Interface protocol:

ONVIF

 Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP,

DNS, DDNS, RTP, RTSP, RTCP, PPPoE,

NTP, UPnP, SMTP, SNMP, IGMP, 802.1x,

QoS, IPv6, Bonjour (SIP, SRTP optional)

Interface

 Communication

 interface:

1pc RJ45 10M /100M Adaptive Ethernet port

Basic

Parameter

 Power input:

DC 12V±10%

 Work environment:

-35℃ - 60℃

Humidity is less than 95% (no condensation)







Products Size :
